SERVO INSERT COUPLINGS

Name: SERVO INSERT COUPLINGS
Brand: ROTOLINEAR SYSTEMS
Price: 13000.0 INR
Availability: InStock

SERVO INSERT COUPLINGS Specification

Bore
25MM

Torque
60 N-m

Connection
Other

Max. Speed
14000 RPM

Thread
PLAIN

Material
Aluminum Alloy

Usage
SERVO MOTOR

Structure
Jaw/Spider

Size
24MM

Standard
EXPANDING CLAMP TYPE

Height
55 Millimeter (mm)

Weight
150 Grams (g)

Outer Diameter
55 Millimeter (mm)

Color
ALUMINIUM

Application
CNC

Length
73 Millimeter (mm)

Width
46 Millimeter (mm)

Surface Treatment
Other

Shape
Reducing

SERVO INSERT COUPLINGS Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Days

About SERVO INSERT COUPLINGS

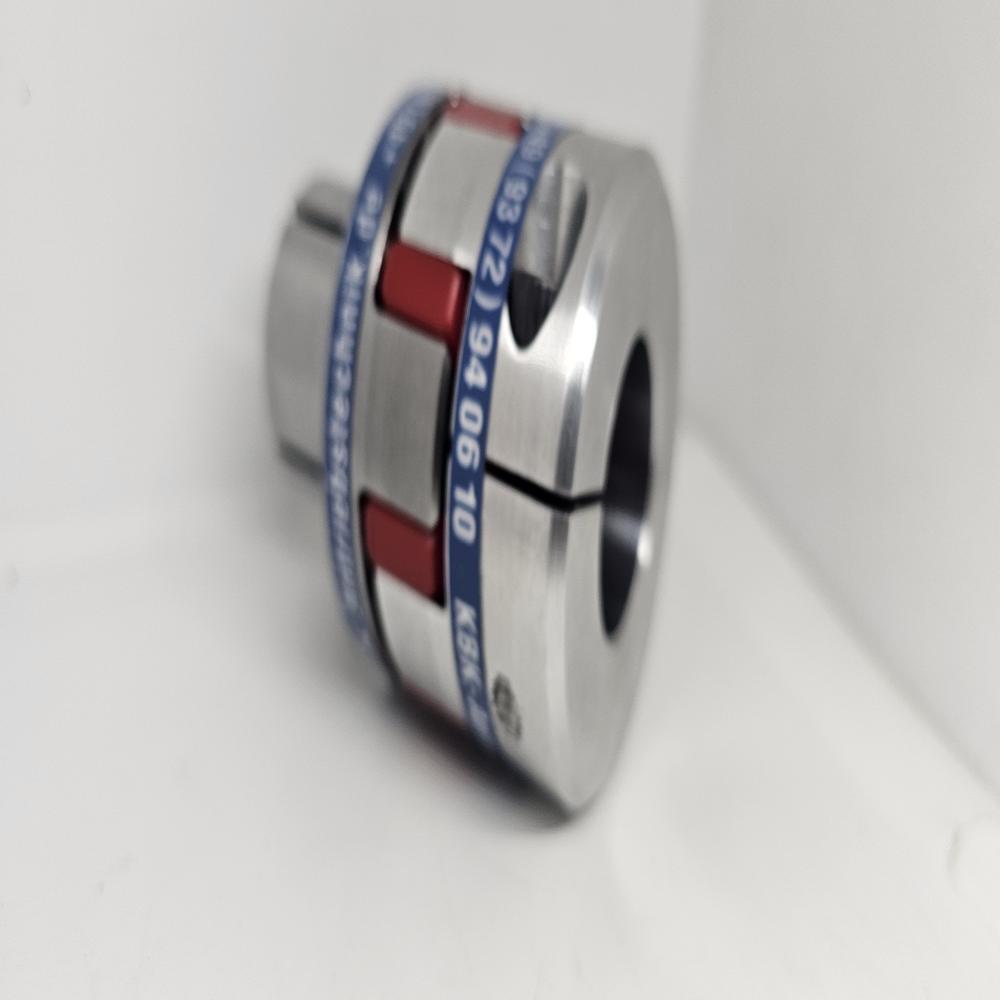

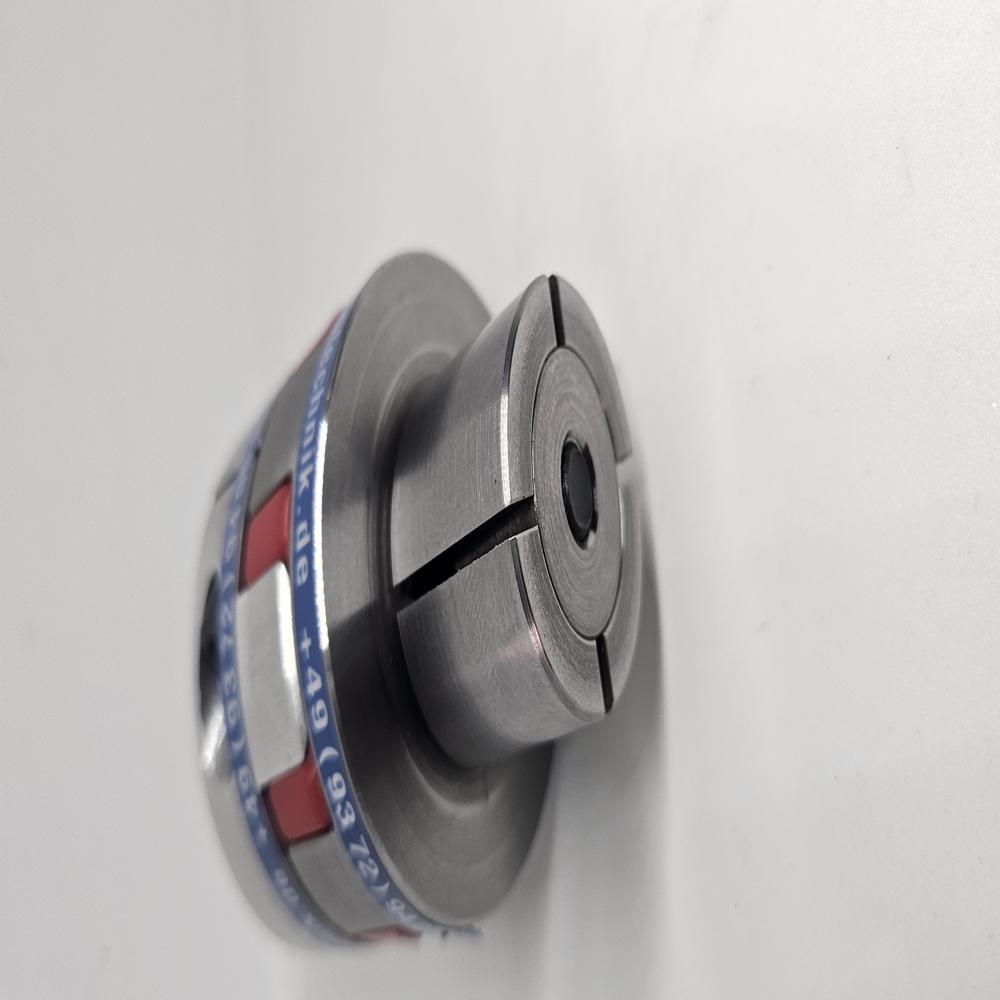

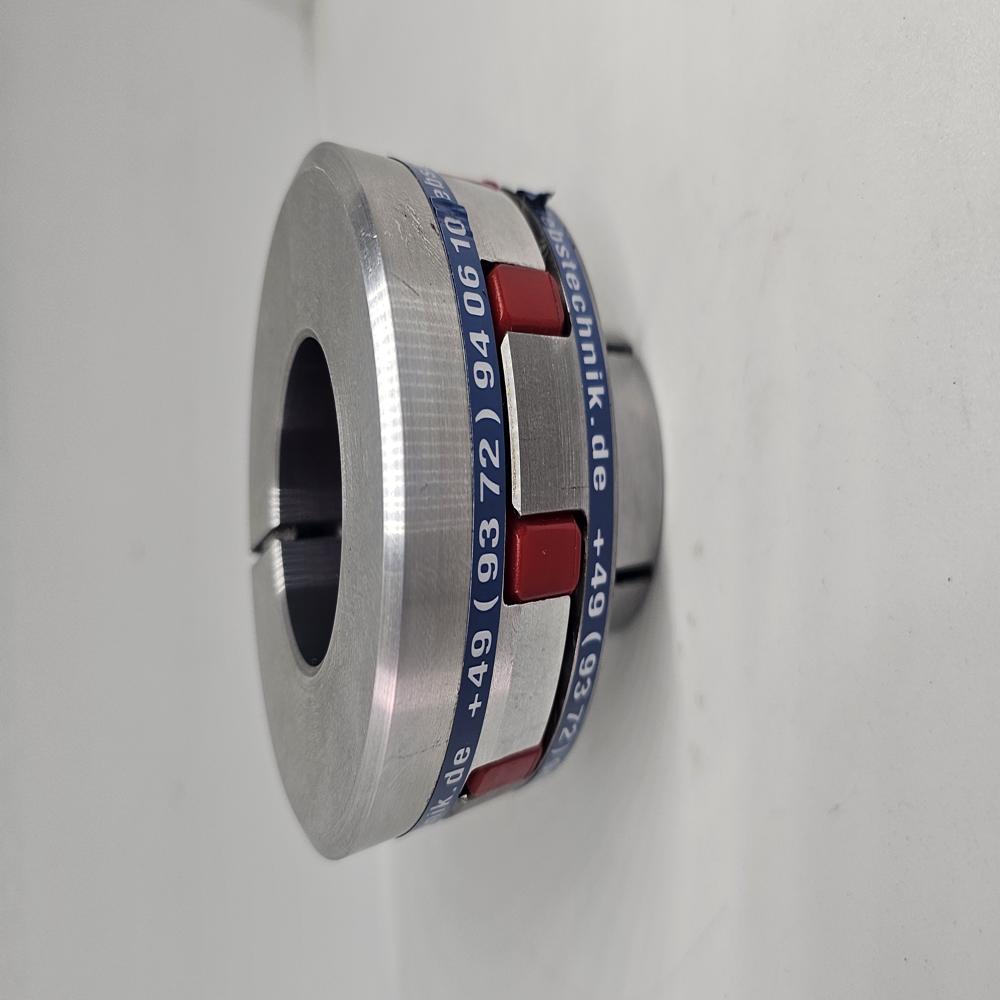

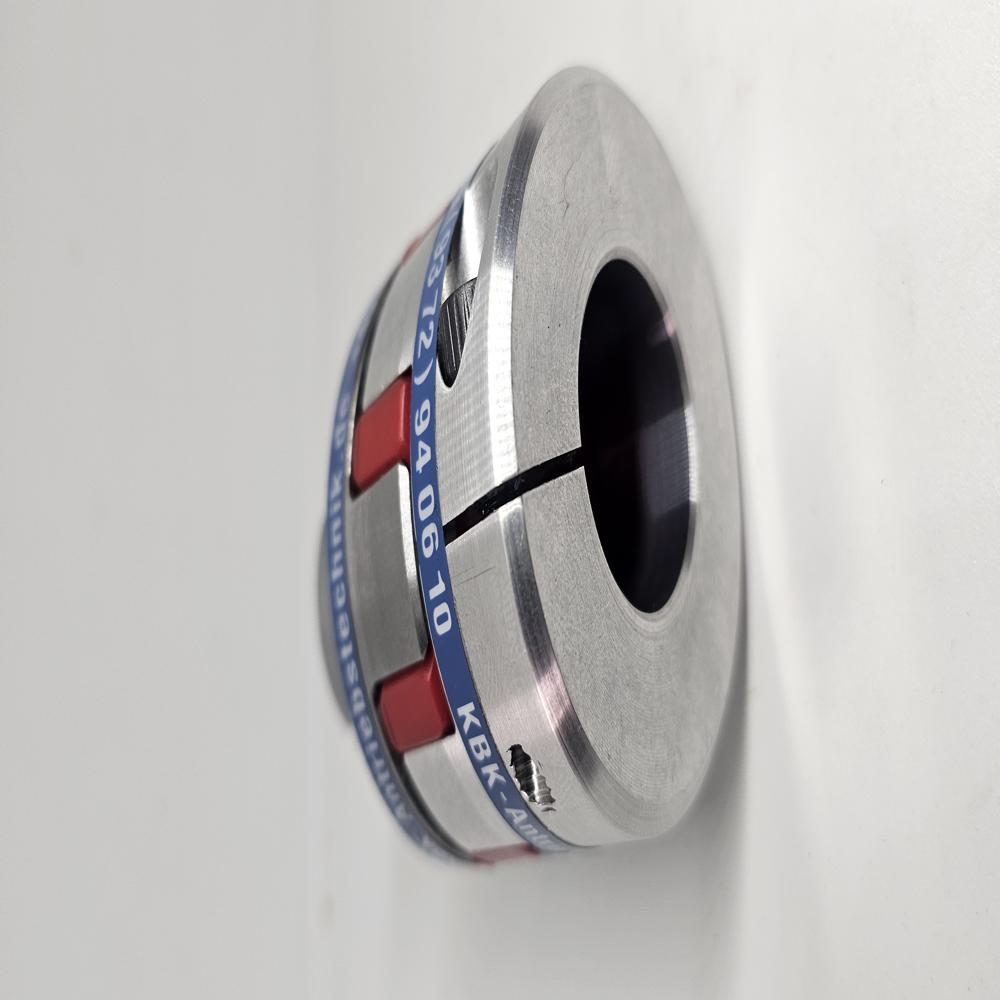

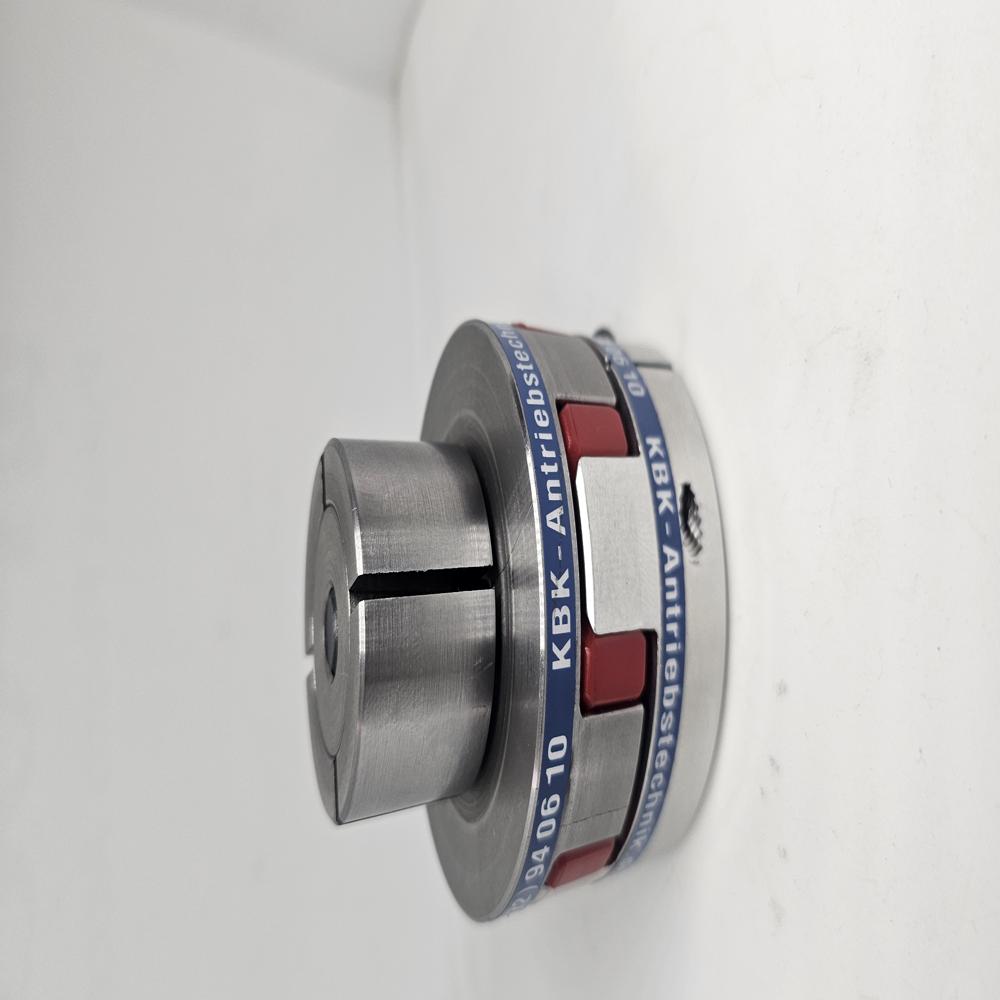

rotolinear systems can supply all size of KBK GERMANY spider or servo insert couplings from STOCK at bangalore. The couplings shown in the picture is KBE4/24-25H7-32f7 ie one side expanding collet type and other side collet clamping type and can be supplied from STOCK at bangalore.

Precision and Reliability for Servo Applications

Built for superior performance in CNC and servo motor tasks, these aluminium-alloy jaw/spider couplings provide high torque strength and impressive speed handling. Their lightweight, reducing design ensures adaptability and ease of installation while maintaining optimal stability during rapid machine operation.

Expanding Clamp Type for Secure Installation

The servo insert couplings feature an expanding clamp mechanism, delivering a strong, slip-resistant grip on shafts without the need for threaded attachment. This ensures a precise connection, even in demanding CNC and industrial automation environments.

FAQ's of SERVO INSERT COUPLINGS:

Q: How do you install the SERVO INSERT COUPLING in a servo motor system?

A: Installation involves aligning the coupling with the servo motor and driven shaft, sliding it into place with the correct bore (25mm), and tightening the expanding clamp. No threading is required due to its plain, clamp-type design, ensuring secure fitment.

Q: What are the key benefits of using an aluminium alloy jaw/spider coupling for CNC applications?

A: The aluminium alloy provides a lightweight but strong coupling, enabling high rotational speeds (up to 14,000 RPM) and torque (60 N-m). The jaw/spider structure helps absorb vibration, enhancing accuracy and reducing wear in CNC machinery.

Q: When should I choose a reducing-shaped coupling like this one?

A: A reducing-shaped coupling is best selected when connecting shafts of different diameters, ensuring smooth torque transmission and compensating for minor misalignments between servo motor and machinery components.

Q: Where can I purchase these servo insert couplings in India?

A: You can acquire these couplings through authorized distributors, importers, manufacturers, suppliers, and traders across India, ensuring competitive availability and support for your industrial needs.

Q: What is the process for selecting the correct servo insert coupling size?

A: Determine the shaft size (bore), outer diameter, width, and required torque for your application. Match these parameters with the product specifications-such as 25mm bore and 55mm outer diameter-to ensure compatibility and optimal performance.

Q: How does the expanding clamp type structure benefit usage in high-speed applications?

A: The expanding clamp type ensures a firm, slip-free connection, minimizing backlash and enhancing stability at high operating speeds. This feature is vital in maintaining accuracy and safety in servo motor-driven automation.
