Servo Gear Reducer

Servo Gear Reducer Specification

Usage
SERVO MOTOR

Weight
2 Kilograms (kg)

Product Type
PLANETARY

Color
BLACK

Size
60

Height
70 Millimeter (mm)

Length
140 Millimeter (mm)

Width
70 Millimeter (mm)

Material
Stainless Steel

Processing Type
Other

Gear Tooth Profile
Helical Gear

Gearing Arrangement
Planetary

Direction
BOTH SIDE

Servo Gear Reducer Trade Information

Minimum Order Quantity
1 Number

FOB Port
ROTOLINEAR BANGALORE

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Per Day

Delivery Time
7 Days

Sample Available
No

Main Domestic Market
All India

About Servo Gear Reducer

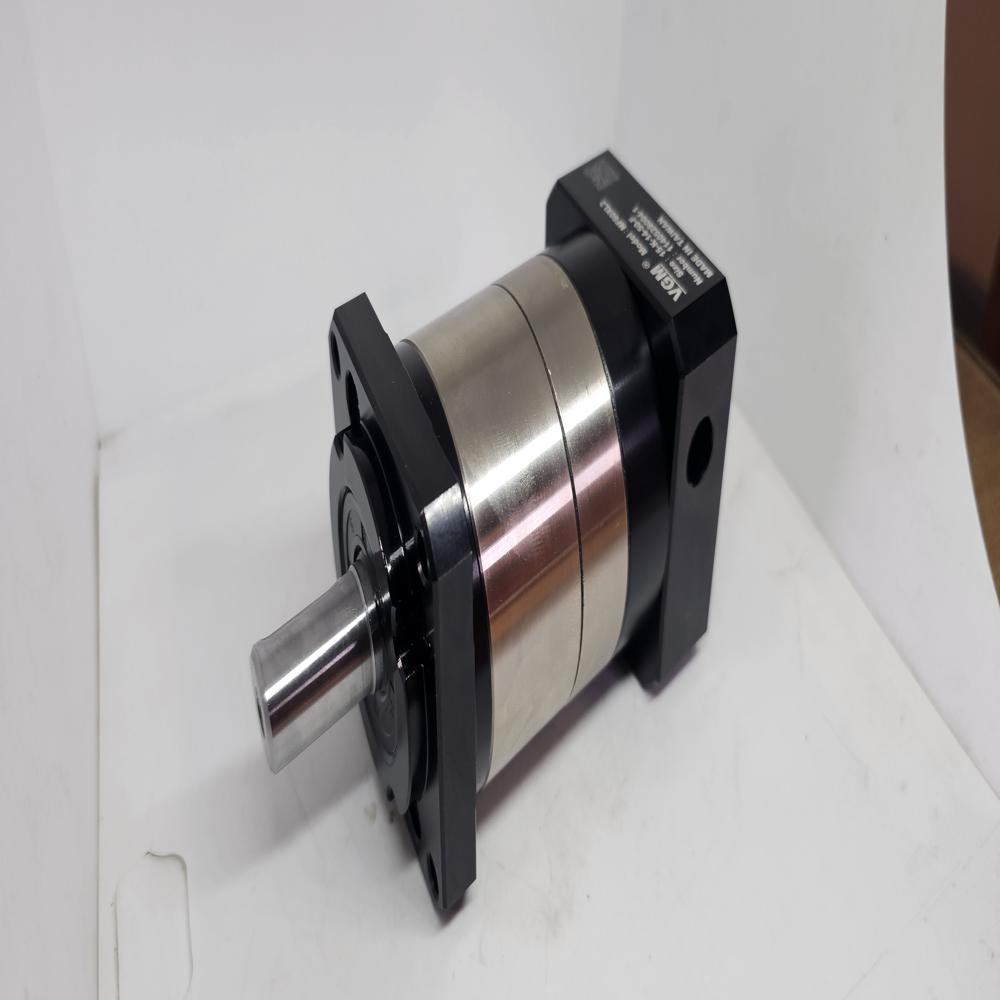

rotolinear systems can supply servo planetary gear head for CNC application. The servo gear head shown in the picture is MF60XL2-15.

The charecterstricts of servo gearboxes are as follows

The highest dynamics in multiple axis systems

Unrivaled price-performance ratio

Low heat generation at highest speeds

For any mounting position

Lifetime lubrication for maintenance-free operation

Precise gearing

Backlash:

Stage1 (L1): Standard: 5 arc-min

Stage2 (L2): Standard: 8 arc-min

Ratio:

Stage1(L1): 3-10

Stage2(L2):12-100

Efficiency of Full Load:

Stage1(L1): 98%

Stage2(L2): 95%

Normal Output Torque: Torque: 11-1900 Nm/p>

Running Noise: 65-72 dBA

Protection Grade: IP65

Rotolinear systems is the leading supplier of CNC machinery parts in Bangalore. Rotolinear systems are the leading supplier of CNC machine parts like Ground ballscrews, Linear guideways , precision locknuts, metal bellow couplings, taper bush , clamping element, shrink disc, rigid couplings, keyless clampings, locking device, flexible disc couplings, servo couplings, torque limiter, safety couplings, servo insert couplings, planetary gearhead, linear actuator ect.
