RIGID SHAFT COUPLINGS

RIGID SHAFT COUPLINGS Specification

Connection
Other

Max. Speed
50000 RPM

Sealing
face locking

Thread
plain shaft

Head Code
Round

Bore
40mm

Torque
900 N-m

Usage
connecting shafts

Material
Steel

Structure
Other

Standard
40x75

Size
40mm

Height
15 Millimeter (mm)

Inner Diameter
40 Millimeter (mm)

Product Type
face tigtening keyless lockings

Outer Diameter
75 Millimeter (mm)

Weight
700 Grams (g)

Color
white

Width
15 Millimeter (mm)

Application
shaft to shaft connection

Length
30 Millimeter (mm)

Surface Treatment
Galvanized

Technique
Other

Shape
Round

RIGID SHAFT COUPLINGS Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Days

About RIGID SHAFT COUPLINGS

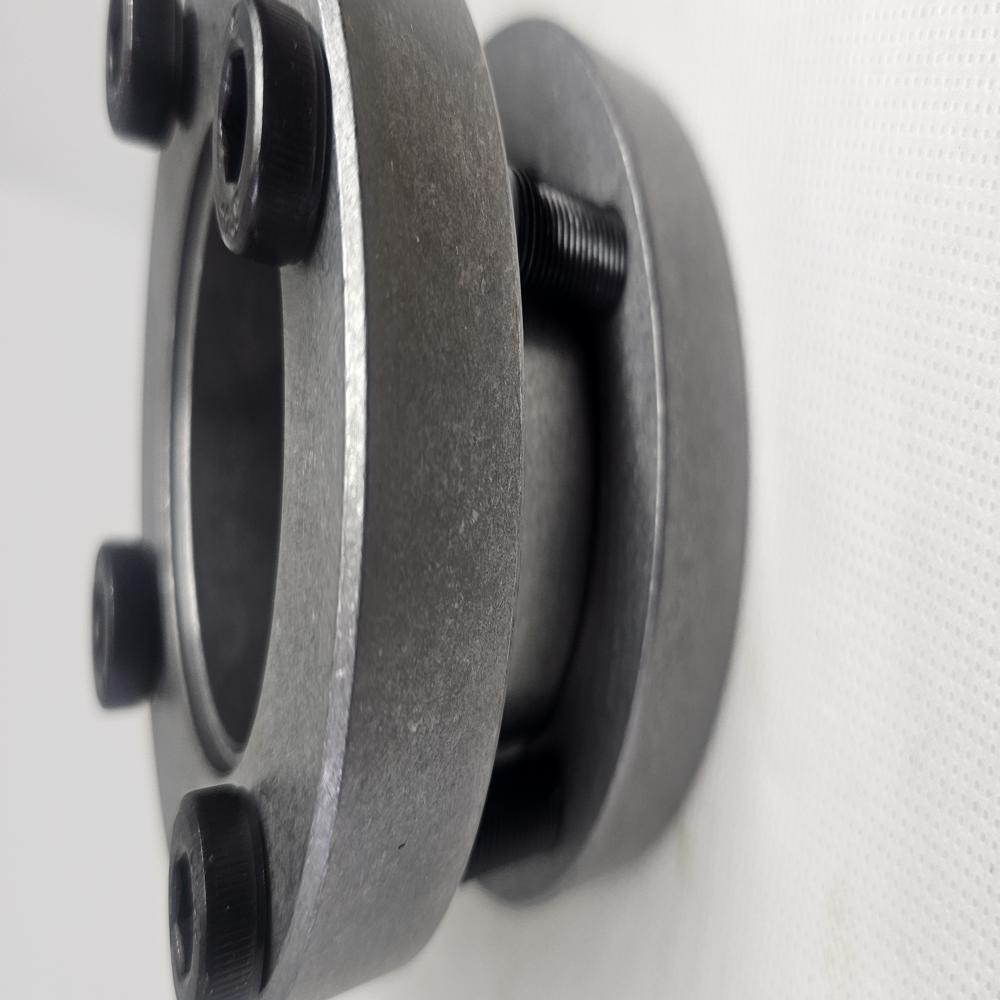

rotolinear systems can supply KBK GERMANY rigid shaft couplings suitable for shaft size of same OD and can be supplied from STOCK. The couplings shown in the picture is KBS 95-40X75 and can be supplied immediatly from stock at bangalore.

Rotolinear systems are the leading supplier of rigid couplings.

rotolinear systems can supply rigid shaft couplings KBS95 for low and medium torques.

For low and middle torques, cost effective

Inner starting from 17 to 70

Outer starting from 50 to 115

Torque ratings starting from 200 to 3770

Locking device for shaft hub connection.

The standard sizes are 15x45, 16x50, 17x50, 18x50,19x50, 20x50, 24x55,25x55, 28x60,30x60, 32x63, 35x75,38x75, 40x75, 42x78, 45x85, 48x90, 50x90, 55x94, 60x100, 65x105,70x115, 75x125, 80x125 ect.

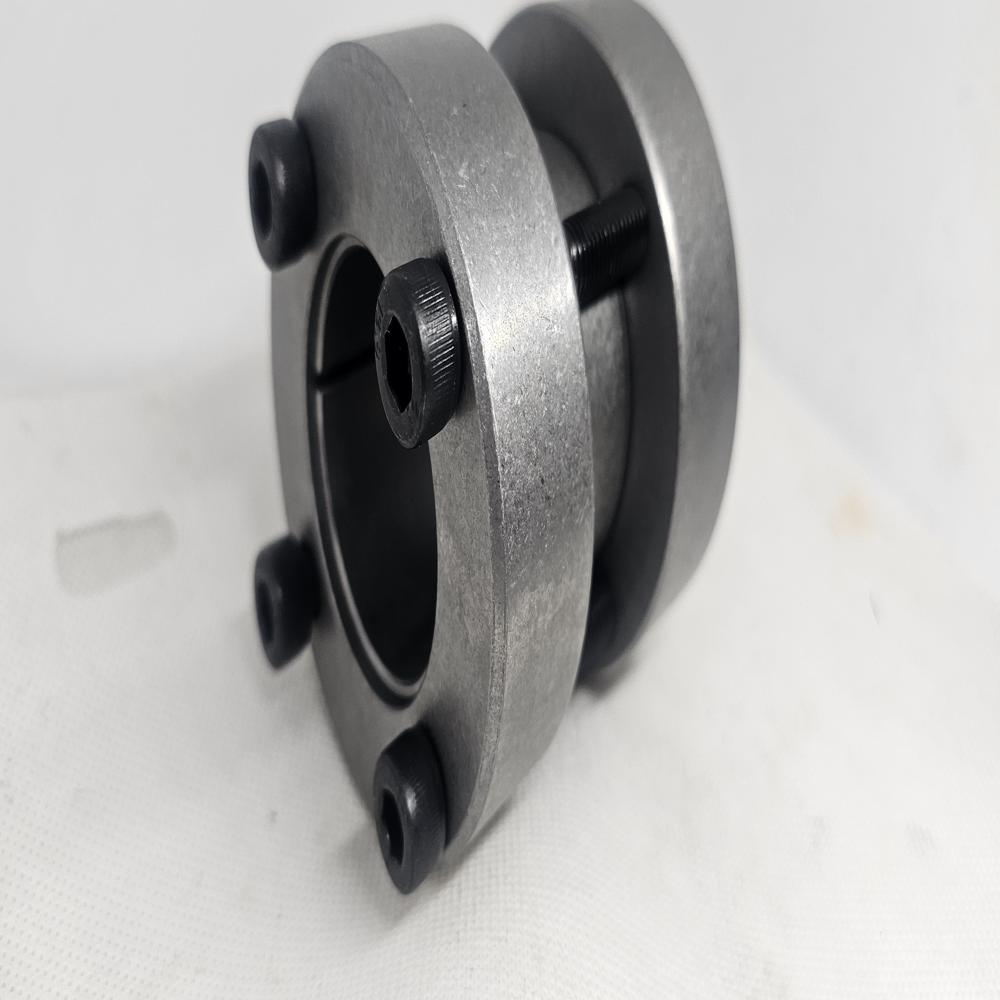

The rigid couplings shown in the photo is KBS95-25 and is available in STOCK at bangalore.

KBS95

The KBS95 series is a specialty among the cone-type connections because it is used as a rigid shaft coupling. This completes our cup couplings of the KBST and KBST-G series.

Product Information

Very inexpensive
For medium and low torques
No axial displacement during assembly
Self-centering
Torque range: 158 - 4300 Nm

Rotolinear systems - bangalore are the leading supplier of imported high quality rigid shaft couplings.

Rotolinear systems is the leading supplier of disc couplings in Bangalore. Rotolinear systems are the leading supplier of CNC machine parts like Ground ballscrews, Linear guideways , precision locknuts, metal bellow couplings, flexible disc couplings, servo couplings, torque limiter, safety couplings, servo insert couplings, planetary gearhead, linear actuator ect.
