METAL BELLOW COUPLINGS

METAL BELLOW COUPLINGS Specification

Head Code
Round

Connection
Female

Max. Speed
6400 RPM

Bore
45

Torque
200 N-m

Material
Stainless Steel

Usage
CNC

Structure
Metal Bellows

Size
200NM

Height
200 Millimeter (mm)

Inner Diameter
45 Millimeter (mm)

Product Type
FLEXIBLE COUPLING

Weight
3 Kilograms (kg)

Outer Diameter
90 Millimeter (mm)

Color
WHITE

Width
120 Millimeter (mm)

Length
120 Millimeter (mm)

Application
SERVO MOTOR

Surface Treatment
Polishing

Technique
Other

Shape
Round

METAL BELLOW COUPLINGS Trade Information

Minimum Order Quantity
1 Number

FOB Port
EX-WORKS ROTOLINEAR BANGALORE

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Per Day

Delivery Time
2 Days

Sample Available
No

Main Domestic Market
All India

About METAL BELLOW COUPLINGS

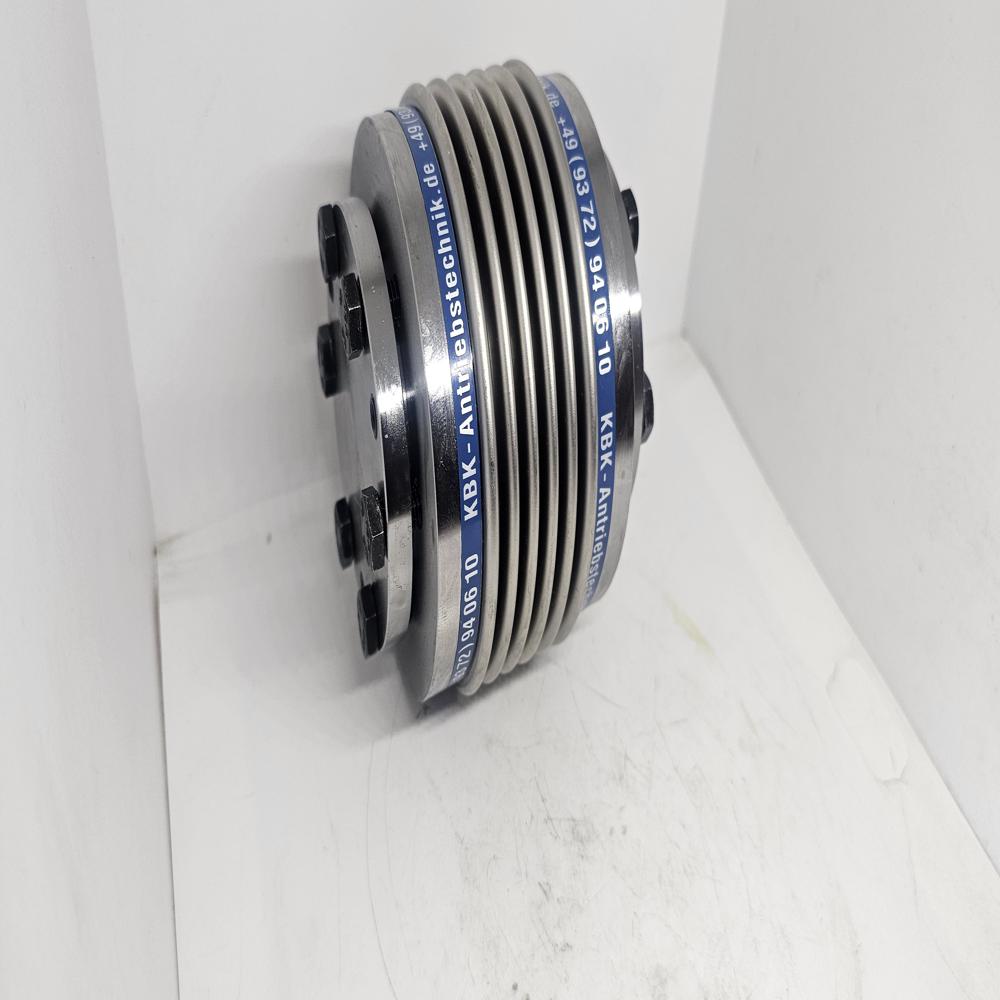

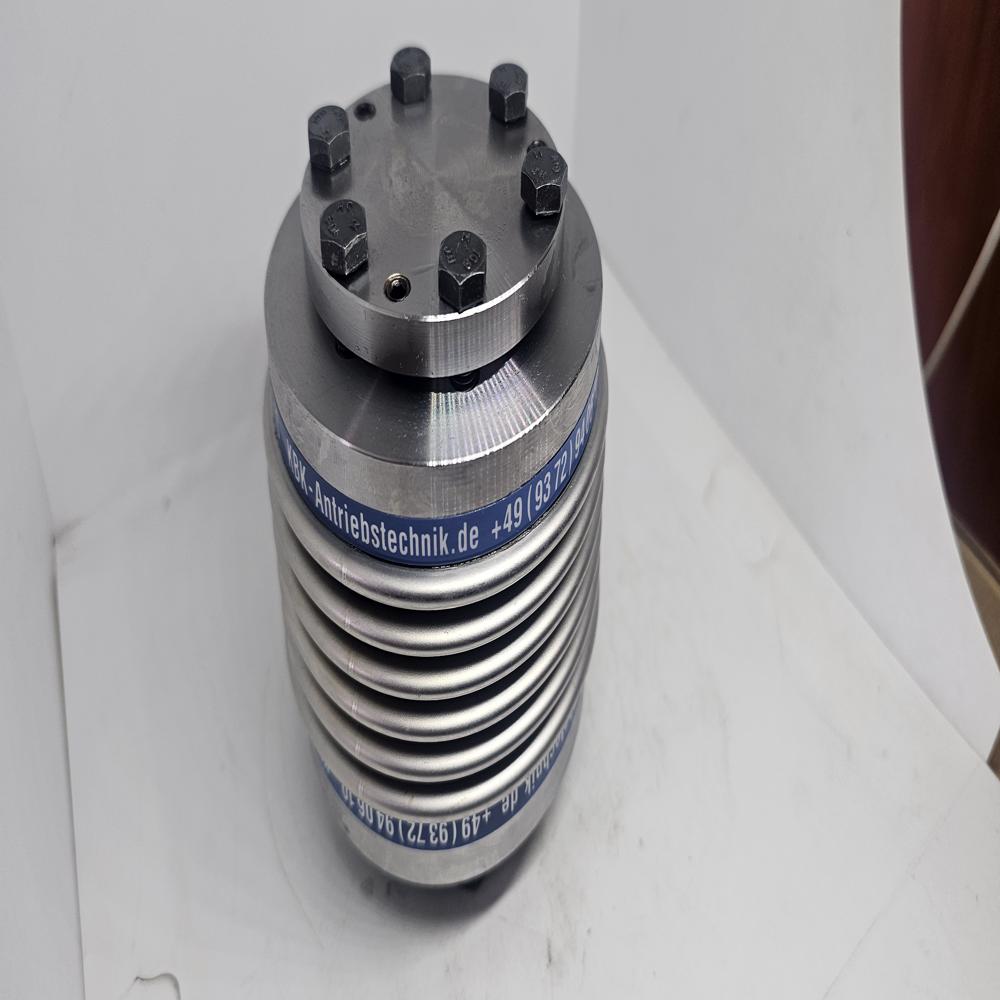

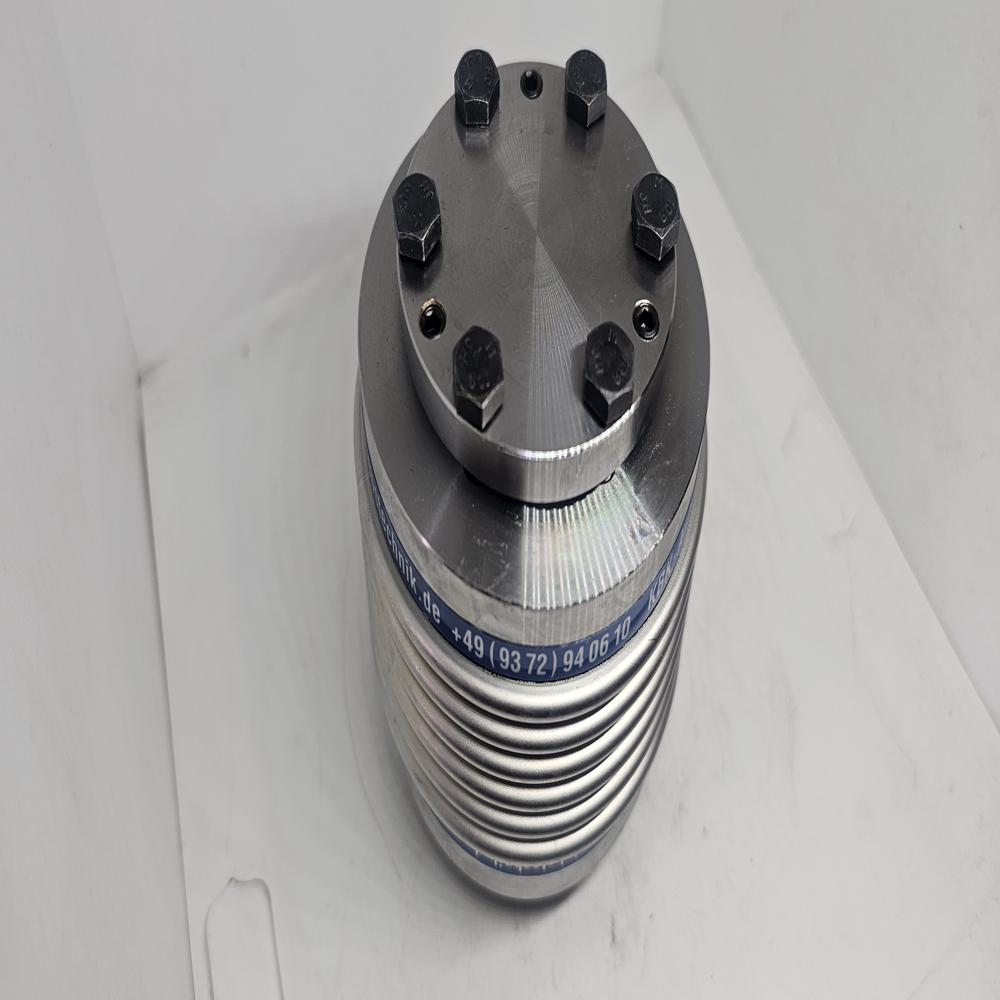

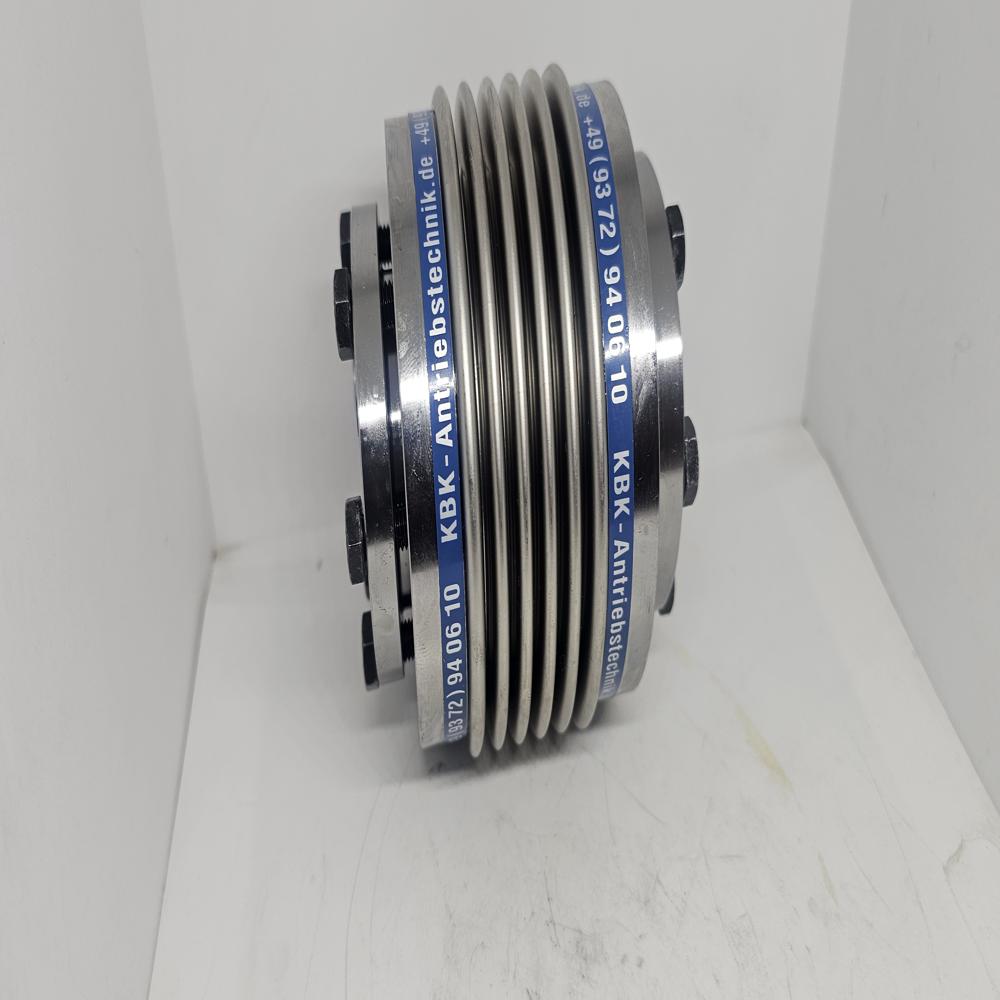

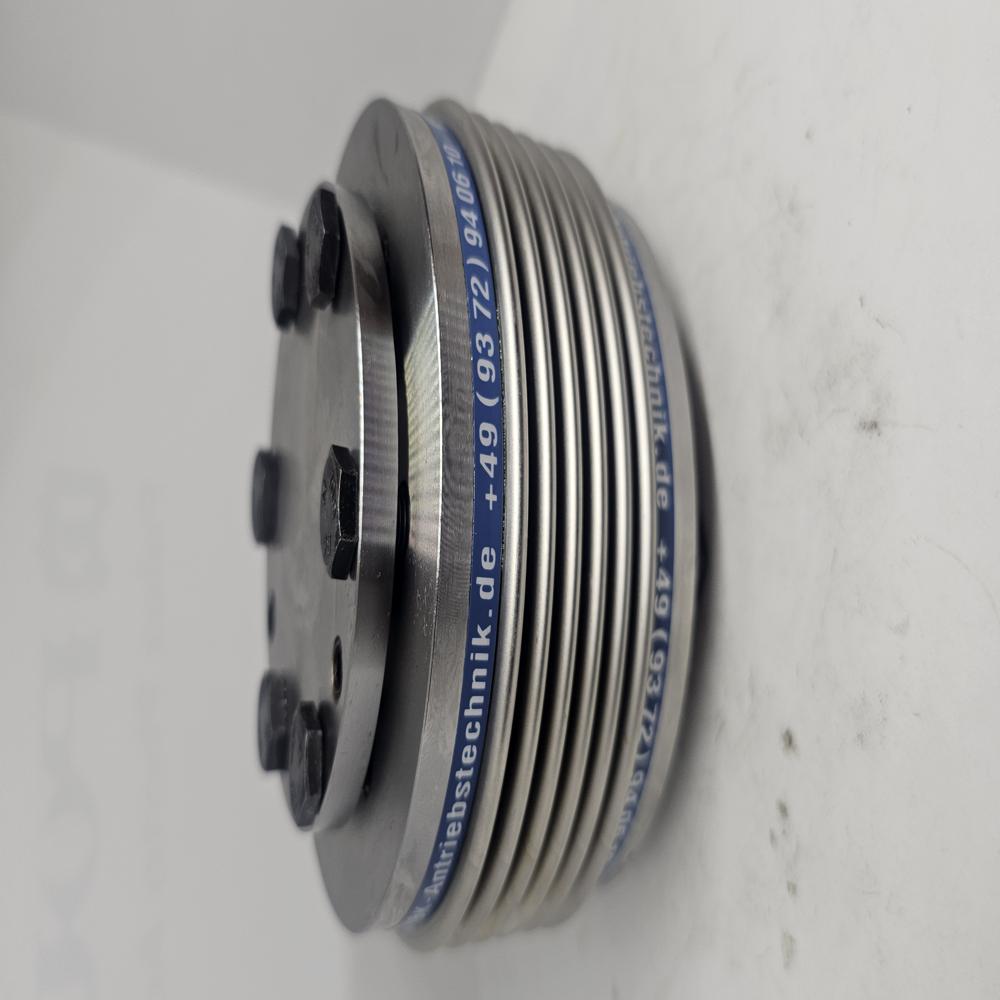

rotolinear systems can supply all size of KBK GERMANY metal bellow couplings . The metal bellow couplings shown in the picture is KB5/200-91 with pilot bore and is available in STOCK. The torque rating is 200Nm.

METAL BELLOW COUPLINGS KB5

Rotolinear systems bangalore can supply Compact type KB5 type metal bellow couplings with conical hub from our STOCK at Bangalore.

KB5

Short version with high clamping force by inner cone connection.

In KB5 the standard torque ratings are 18Nm, 30Nm, 60 Nm, 80Nm, 150 Nm, 200Nm, 300Nm, 500 Nm, 800Nm, 1400Nm, 3000Nm & 5000 Nm.

The detailed catalouge page of the all products will be available in our website rotolinearindia.com or you can email us in the email ID: rotolinear@rediffmail.com. The basic construction of the bellows will be stainless steel and hub will be aluminium( the hub can be supplied in stainless steel also with laser beam welded).

The coupling shown in the picture is metal bellow couplings KB5/200-91

The charecterstricts of KB5 couplings are as follows

Product information

Backlash-free metal bellows coupling with inner conical hubs
For shaft diameters from 10 90mm
High torsional stiffness, compensation of shaft misalignment at low restoring forces
Compact design with high clamping forces
Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines
Torque range: 18 5000Nm

APPLICATIONS FOR METAL BELLOWS COUPLINGS

Servo Drives

Stepping motors

Machine tools

Wood Working Machines

Packing Machines

Factory Automation Machinery

Positioning Applications

Rotolinear systems can supply all sizes of KBK GERMANY metal bellow couplings model KB5 from our STOCK at Bangalore. Rotolinear systems are the exclusive distributor for KBK GERMANY products in india.
