METAL BELLOW COUPLINGS

Rotolinear systems bangalore can supply KB4 type metal bellow couplings with collet clamping hub from our STOCK at Bangalore.

In KB4 the standard torque ratings are 18Nm, 30Nm, 60 Nm, 80Nm, 150 Nm, 200Nm, 300Nm, 500 Nm, 800Nm & 1400Nm.

The detailed catalouge page of the all products will be available in our website rotolinearindia.com or you can email us in the email ID: rotolinear@rediffmail.com. The basic construction of the bellows will be stainless steel and hub will be aluminium( the hub can be supplied in stainless steel also with laser beam welded). The misalignment , the speed in RPM( 5000 to 12800) ect will vary depending on the size and is mentioned in the catalogue.

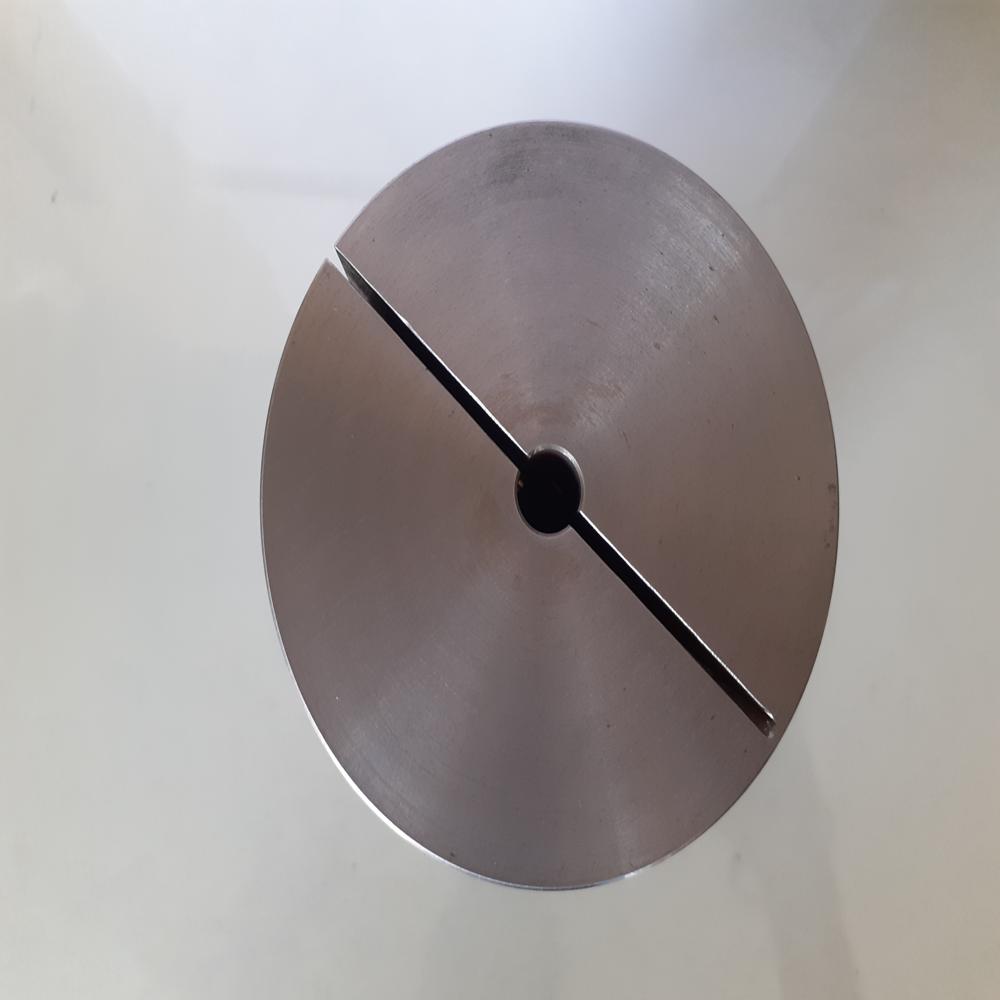

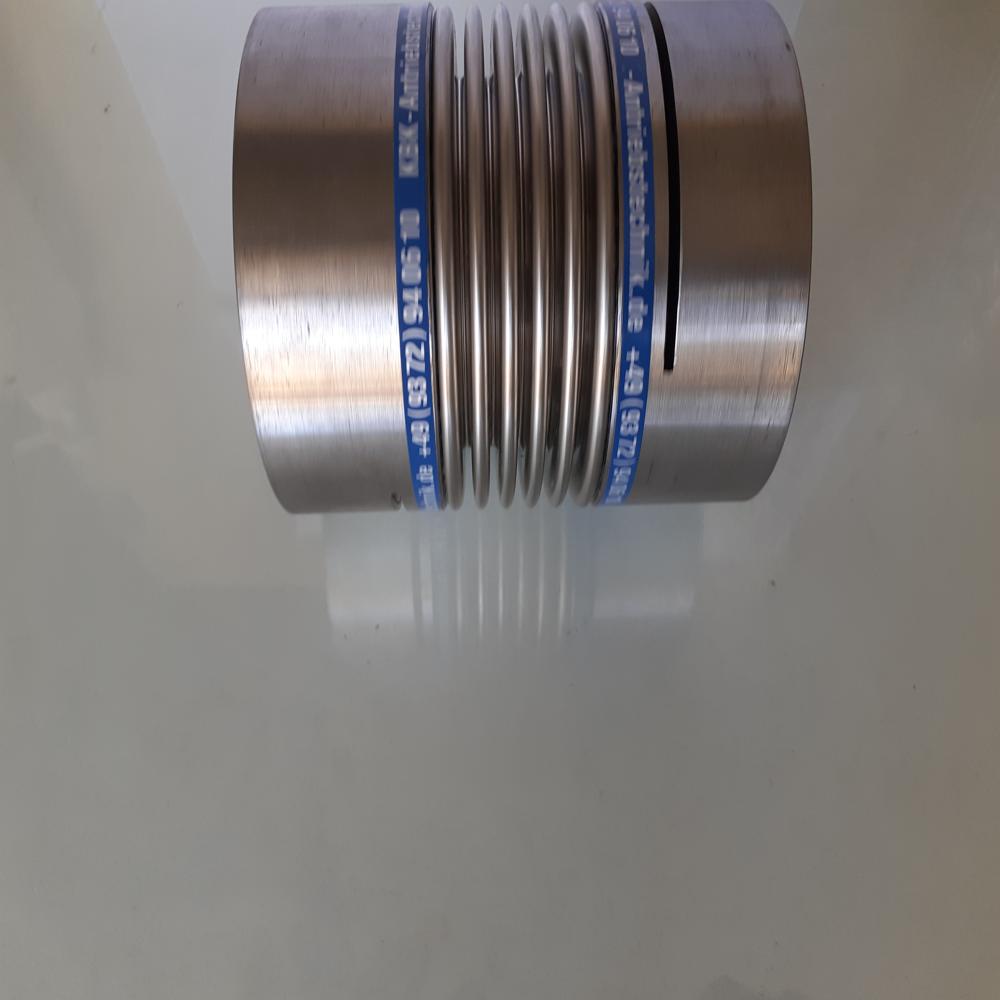

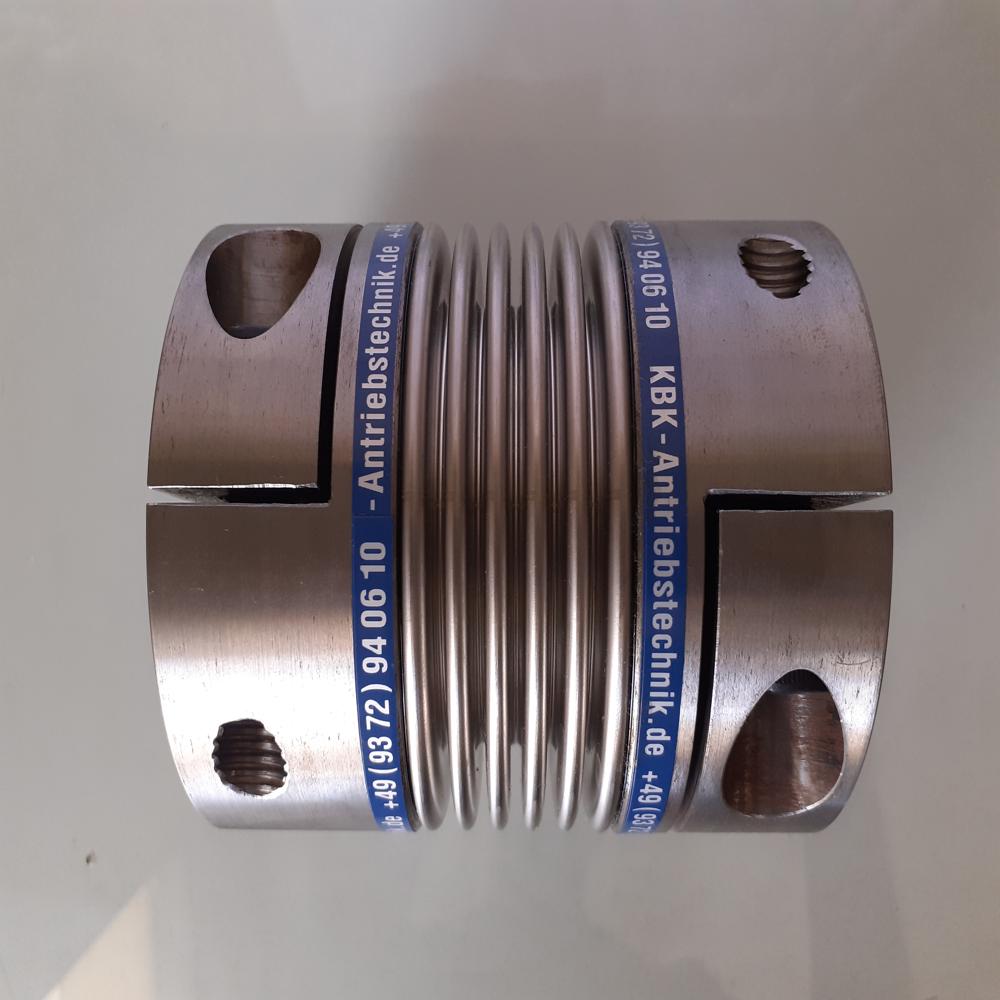

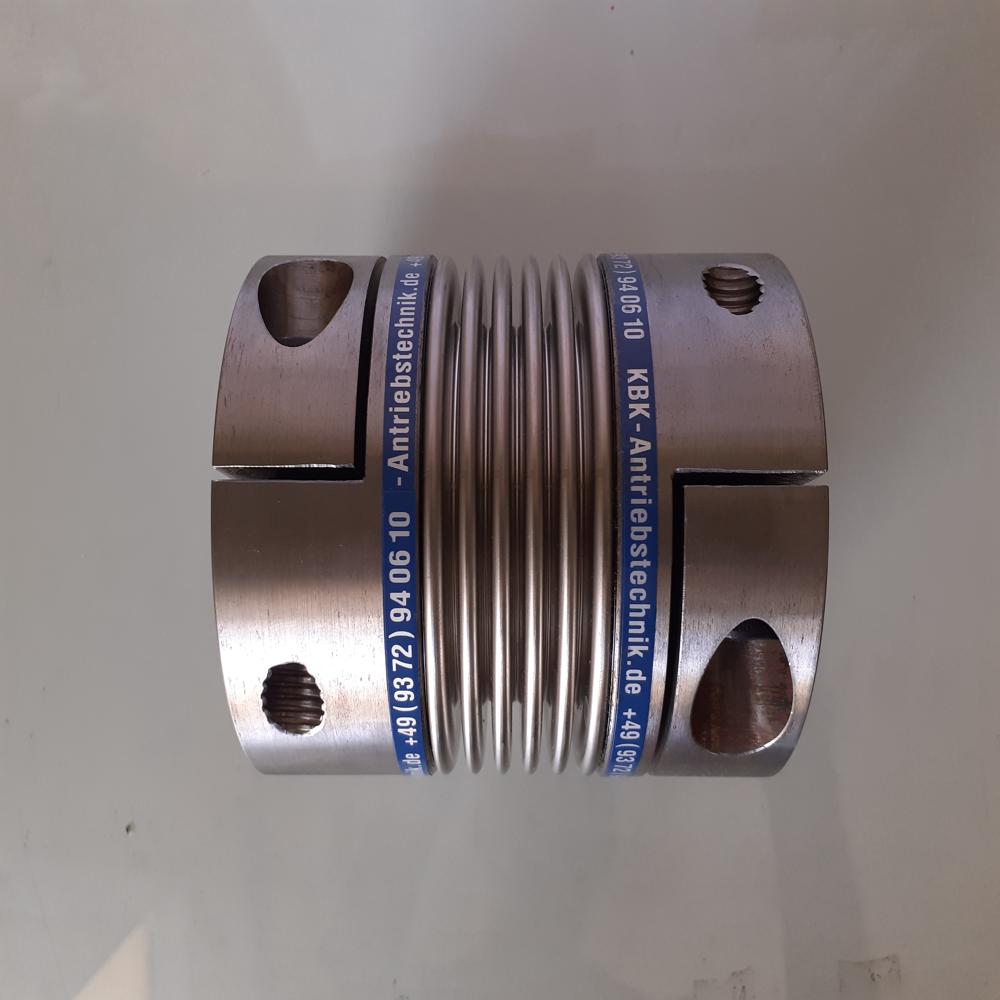

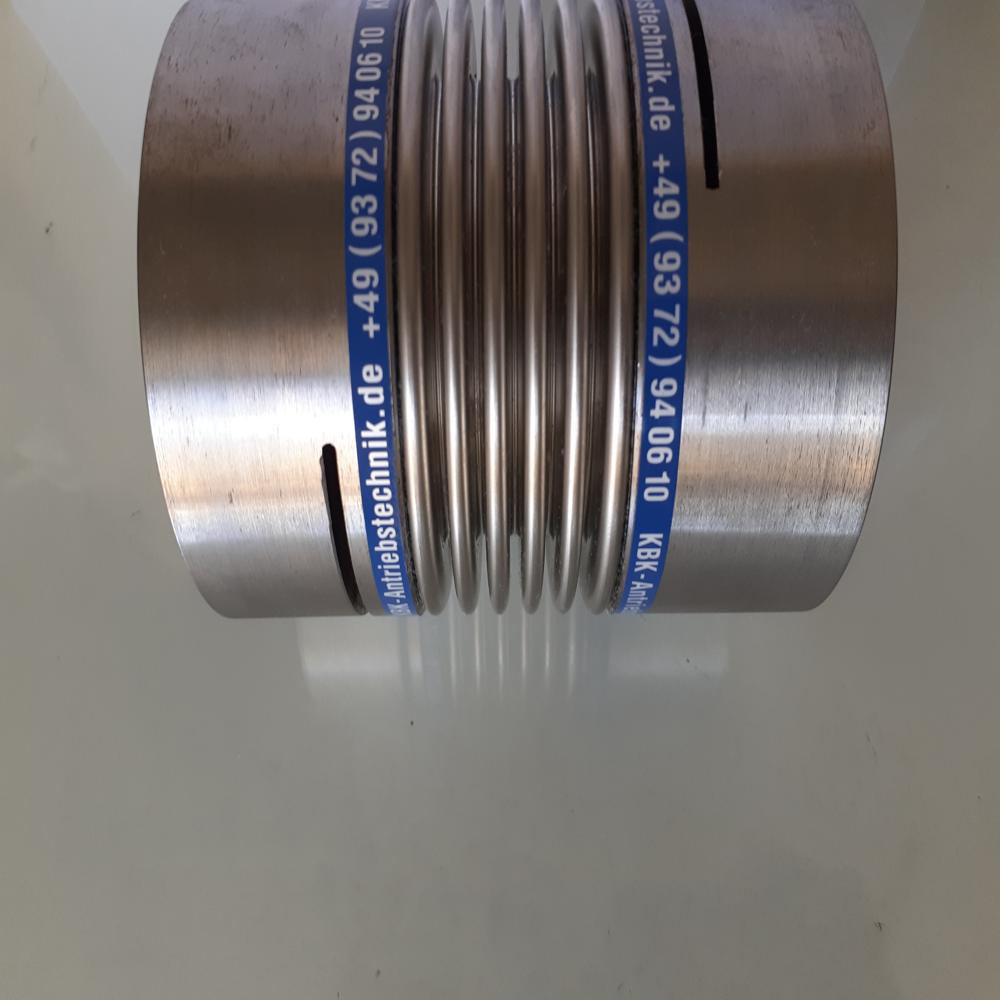

The coupling shown in the picture is metal bellow couplings KB4/30-73

The charecterstricts of KB4 couplings are as follows

The great classic! The most popular version - even at high torques - is the clamping hub version.

• Backlash-free metal bellows coupling with clamp hubs
• Torque range: 18 1400Nm
• For higher speed of 50000RPM ect. We can supply dynamic balanced couplings.
• Hub material: up to 60Nm aluminum, up from 80Nm - steel
• For shaft diameters from 10 80mm
• High torsional stiffness, compensation of shaft misalignment at low restoring forces
• Easy to assemble
• Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines

APPLICATIONS FOR METAL BELLOWS COUPLINGS

Servo Drives

Stepping motors

Machine tools

Wood Working Machines

Packing Machines

Factory Automation Machinery

Positioning Applications

Rotolinear systems can supply all sizes of metal bellow couplings model KB4 from our STOCK at Bangalore. Rotolinear systems are the exclusive distributor for KBK GERMANY products in india.

Rotolinear systems the leading supplier of metal bellow couplings and all type couplings based in bangalore.
