KEYLESS TAPER LOCK COUPLINGS

KEYLESS TAPER LOCK COUPLINGS Specification

Usage
Hardware Fitting

Product Type
Friction-Fit Couplings

Material
STEEL

Application
Metal/Wood Cabinet

Security Level
hubs to shafts

Shape
Round

KEYLESS TAPER LOCK COUPLINGS Trade Information

Minimum Order Quantity
1 Number

FOB Port
ex-works rotolinear bangalore

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Per Day

Delivery Time
2 Days

Sample Available
No

Main Export Market(s)
Asia

Main Domestic Market
All India

About KEYLESS TAPER LOCK COUPLINGS

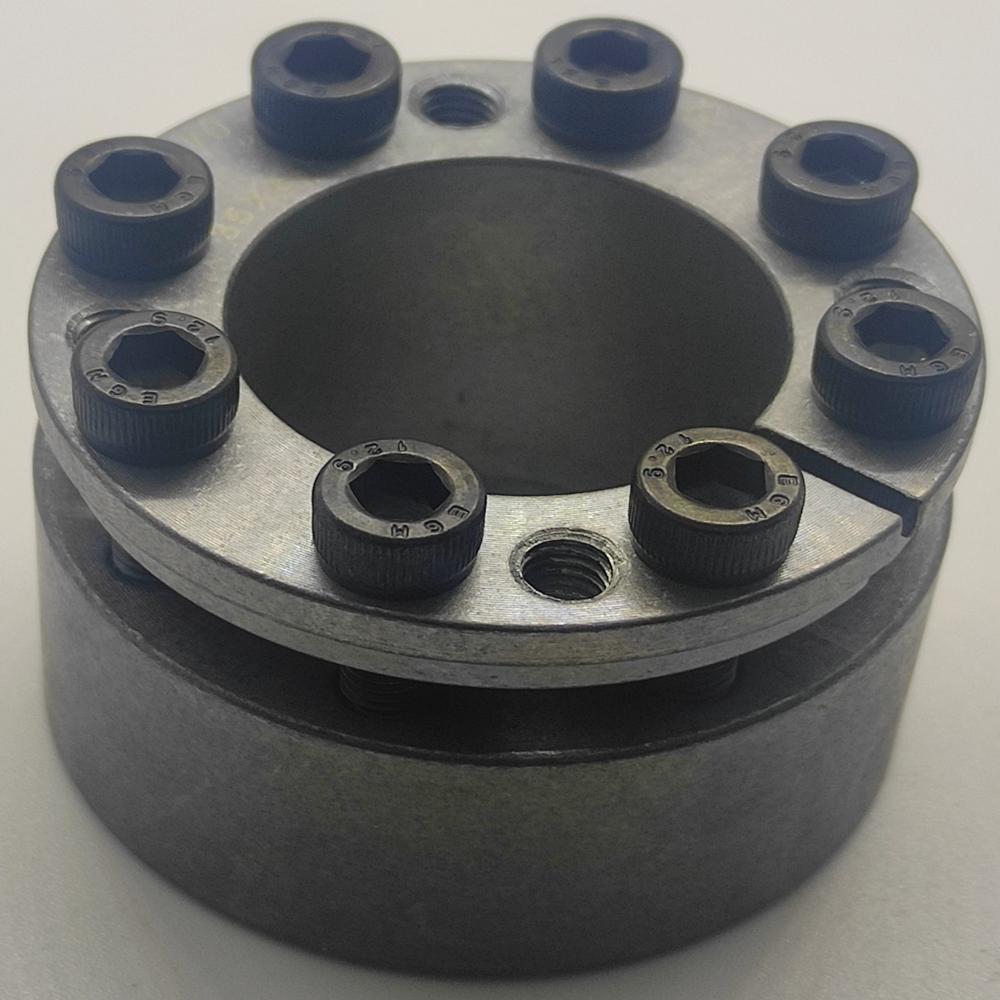

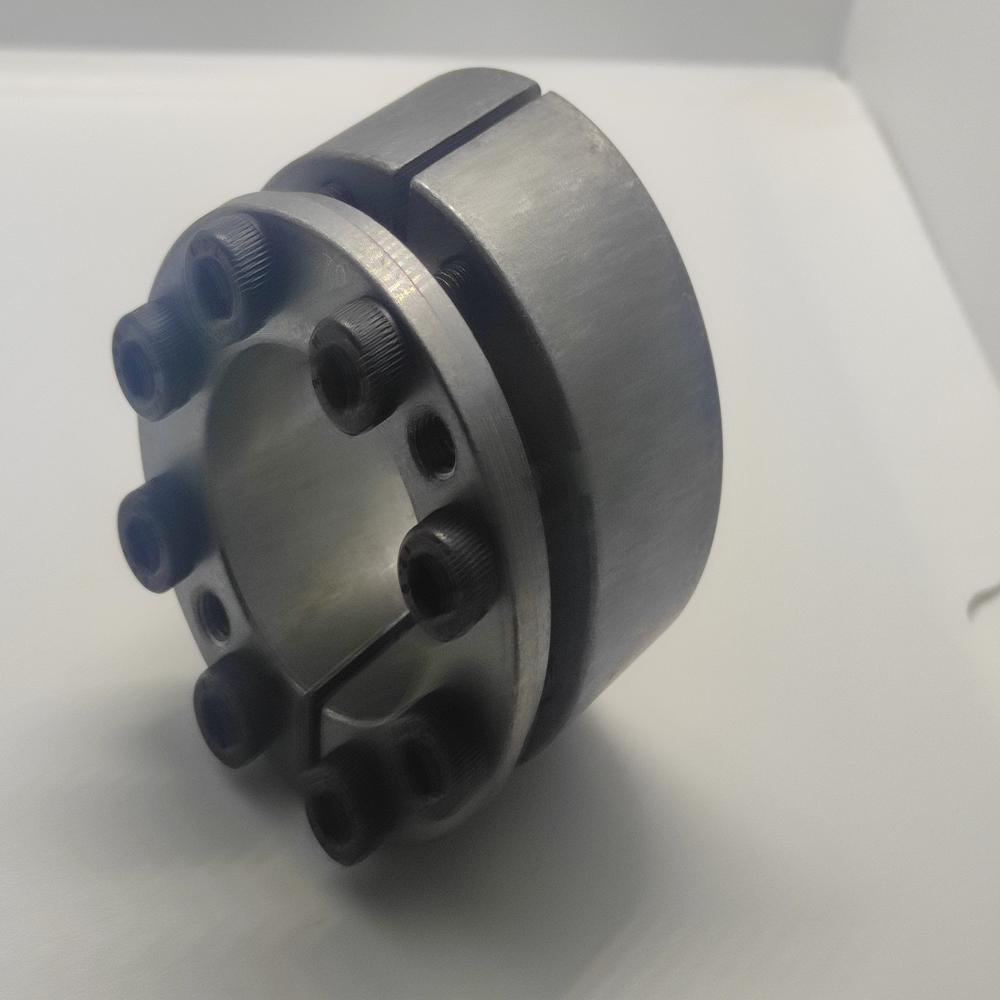

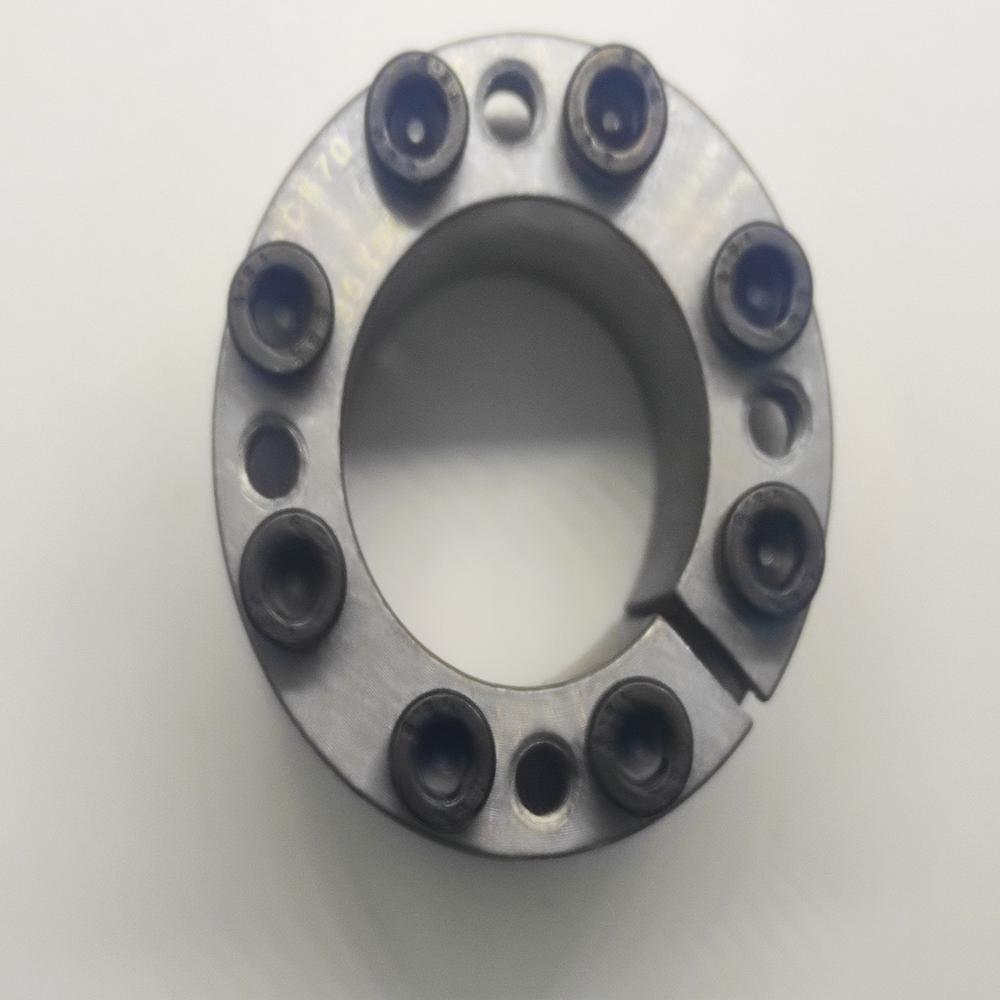

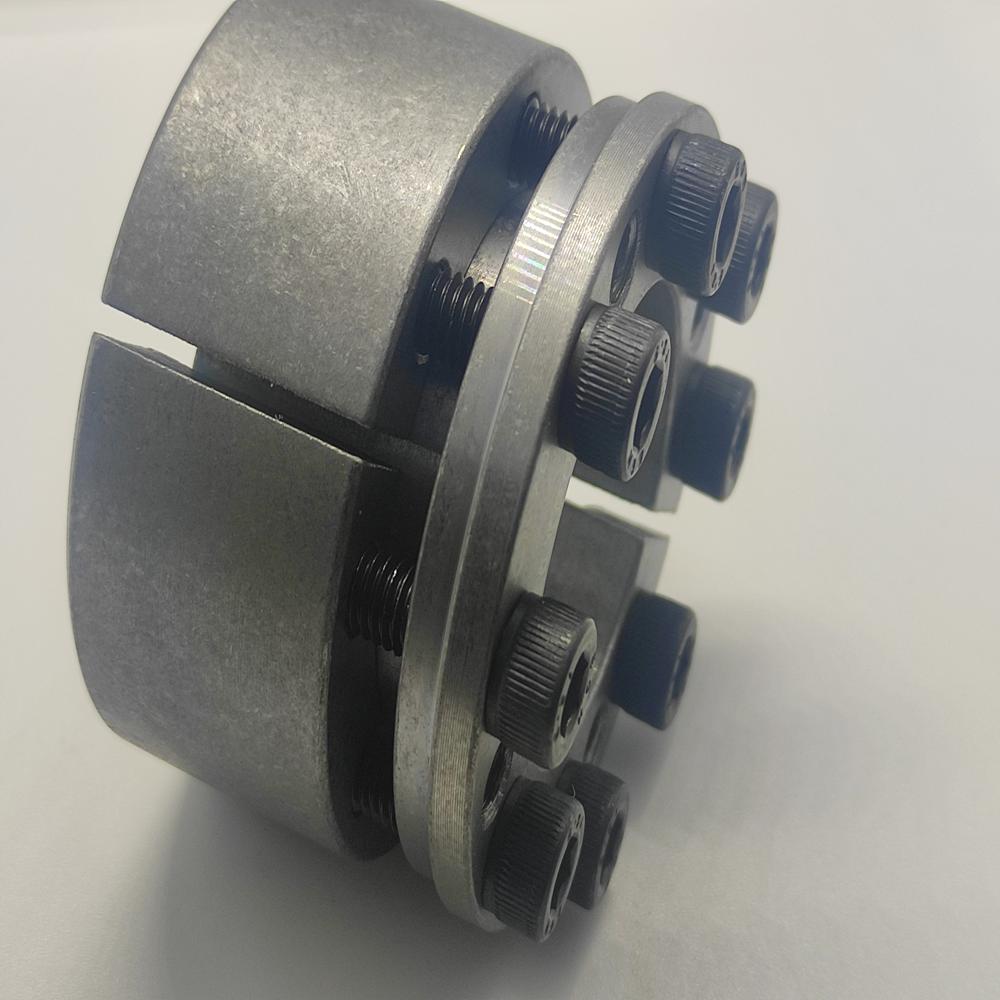

rotolinear systems can supply KBK GERMANY locking device from our stock at Bangalore. The product shown in the picture is KBS70-35X60 and is available in STOCK at bangalore.

Rotolinear systems can supply KBS 70 locking device from the STOCK at Bangalore. The locking device shown in the picture is KBS 70 35X60( ID:35MM, OD: 60MM, LENGTH:45MM, TORQUE: 1030NM) available in STOCK at Bangalore. Most of the other sizes of KBS 70 keyless clampings ( Shaft to hub connection) are also available in STOCK at Bangalore

KBS70- KEYLESS CLAMPING

A standard component with low contact pressure due to the long constructive form. Self-centering with high torque capacity

For high concentricity and perpendicularity of the components
No axial displacement during assembly
Self-centering
Torque range: 350 - 41300 Nm

transmittable Torque: high

surface pressure on hub: medium

self-centering : yes.

axial movement of the hub during assembly: yes

height D/d: high

overall length: medium

Rotolinear systems www.rotolinearindia.com is the leading supplier of disc couplings in Bangalore. Rotolinear systems are the leading supplier of CNC machine parts like Ground ballscrews, Linear guideways , precision locknuts, metal bellow couplings, flexible disc couplings, servo couplings, torque limiter, safety couplings, servo insert couplings, planetary gearhead, linear actuator ect.

Rotolinear systems - bangalore are the leading supplier of keyless clamping device available in STOCK at Bangalore
