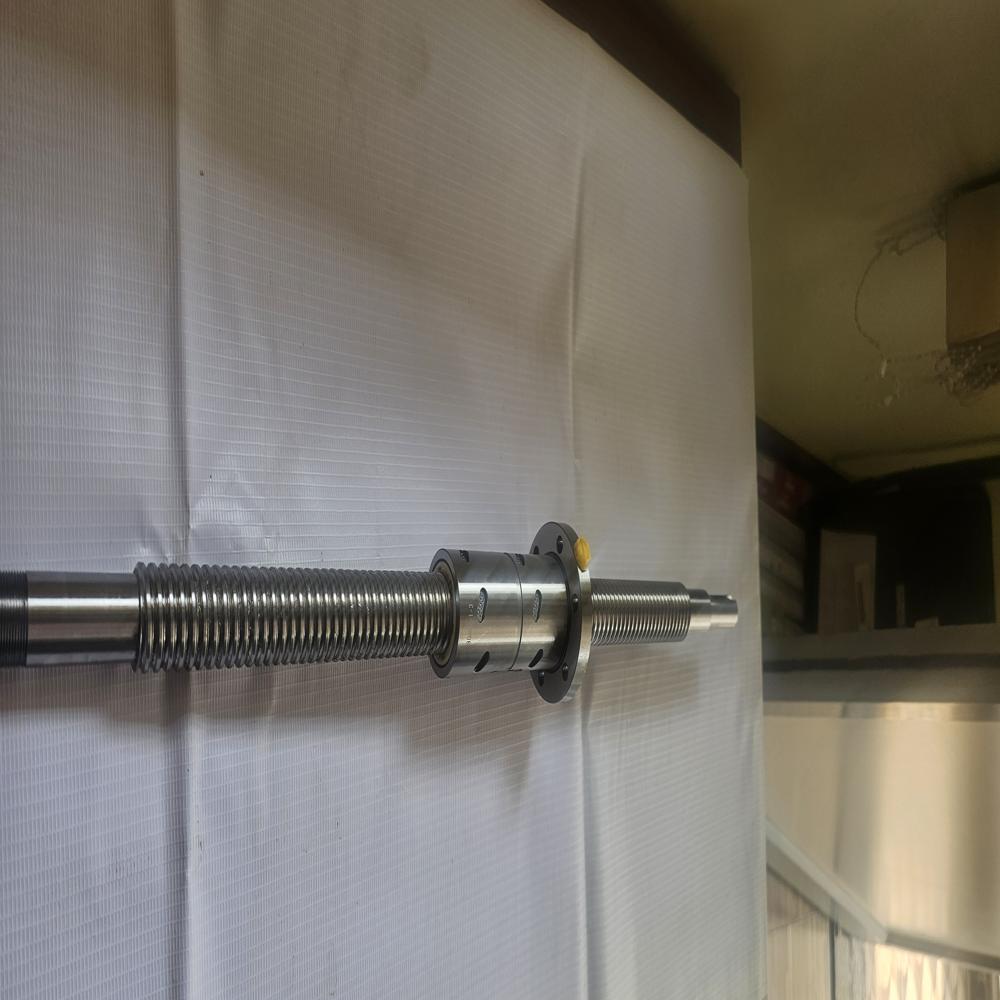

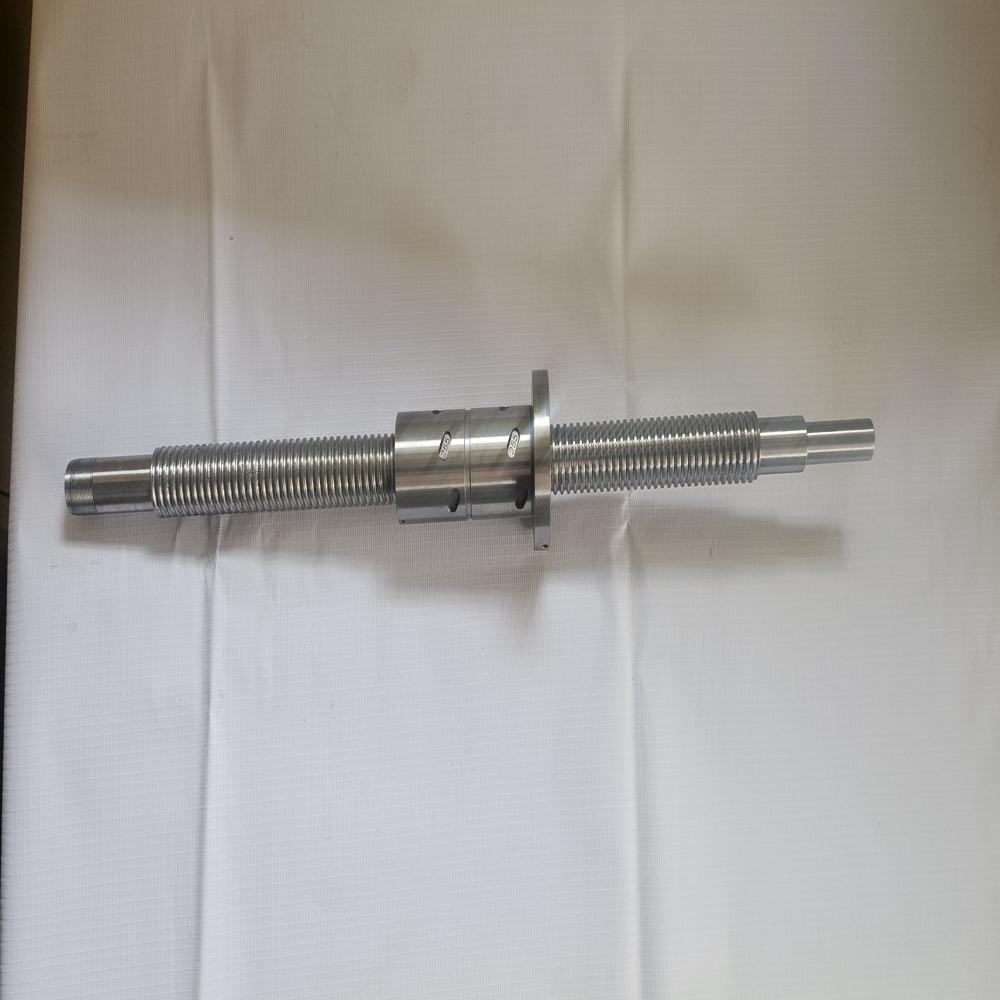

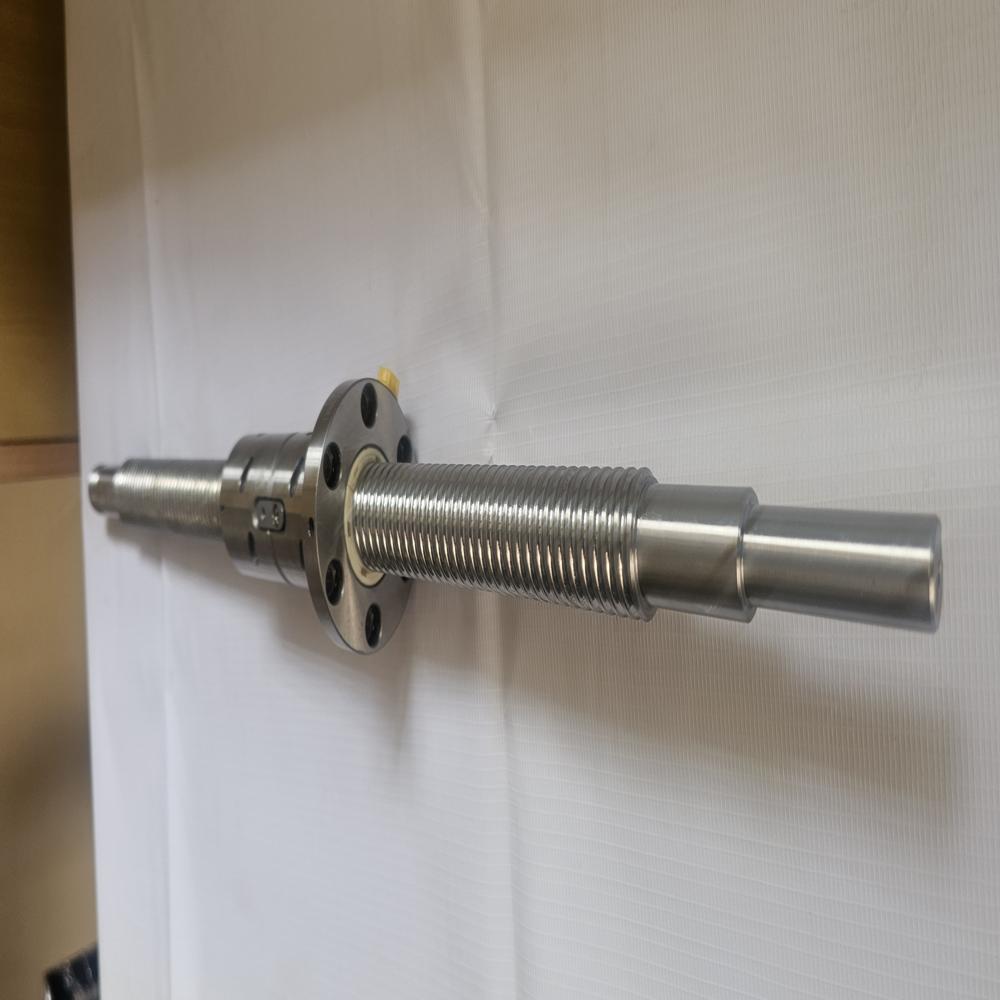

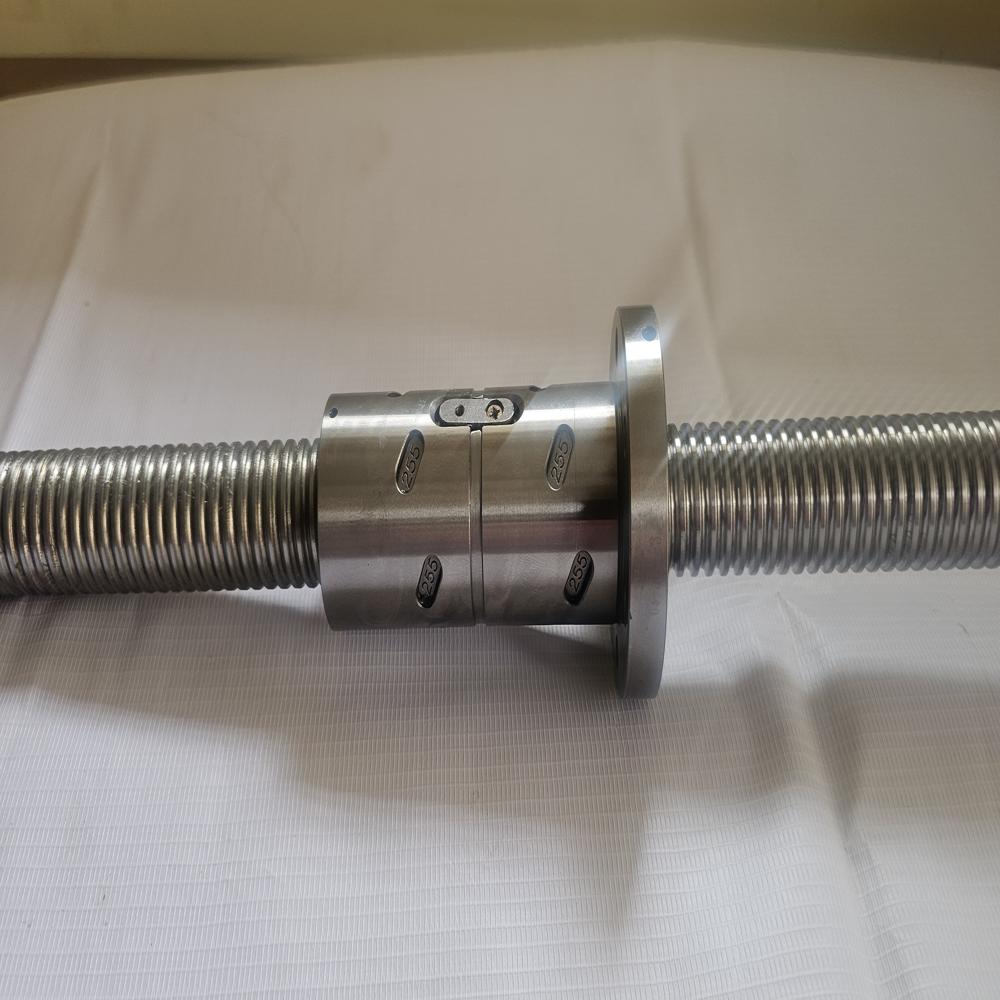

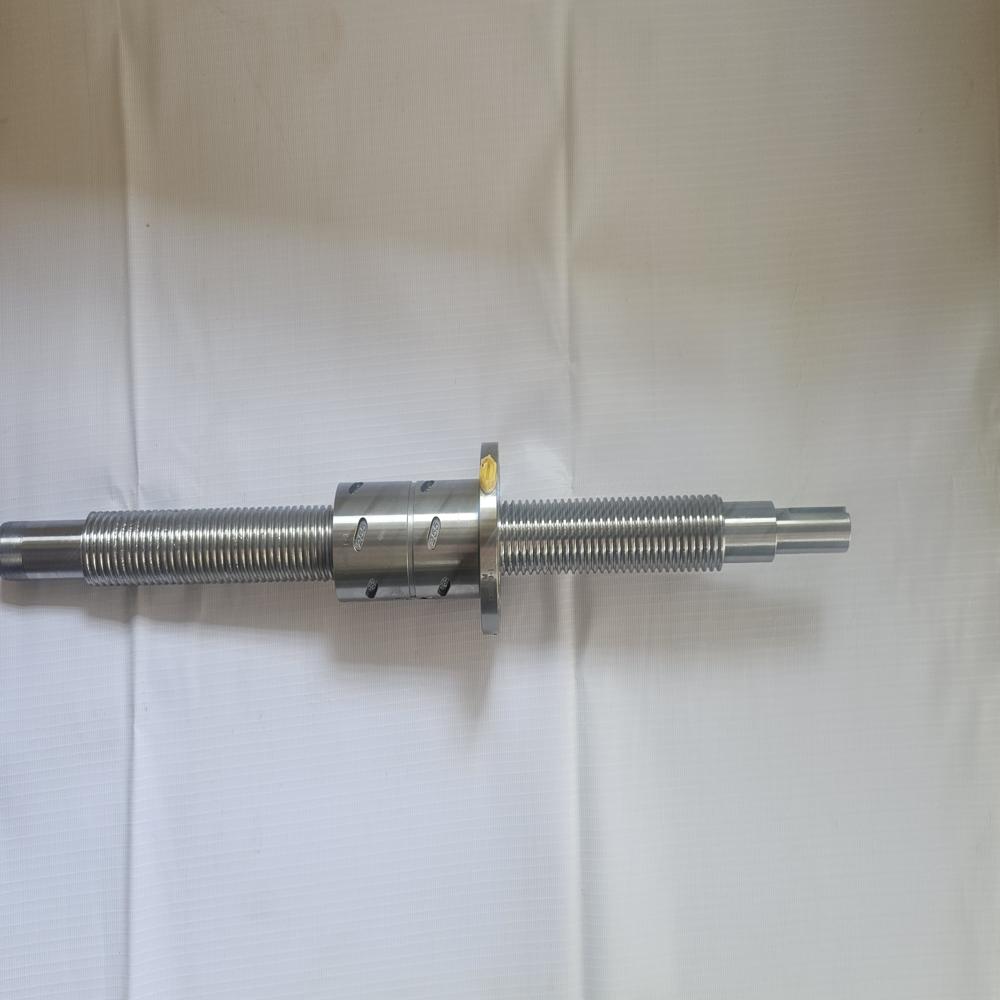

GROUND BALLSCREW

About GROUND BALLSCREW

                                    LTM BALLSCREWS

KINDS OF CIRCULATION AND NUT TYPES

The ballscrew keeps the steel ball recirculating countinually between the screw shafts

And nut by the circulate components (tubes or deflectors), whose primary function markes sliding contact change in to rolling contact so that we can get high efficiency

, rigidity, accuracy and very little backlash, temperature rising, advantages. It is widely used in linear rotation motion.

Basically there are two types recirculation in design.

One is called external, circulation type. A tube is used to circulate balls the tube scoops balls from the screw shaft passing through the return tube to their original position.

The other is called external circulation type. The deflector changes the route of ball movement as a result ball override the thread crest and return to original position thus maintaining perpetual motion.

(k). INTERNAL RECIRCULATION TYPE BALLSCREWS NUT ASSEMBLY FSI type

 Nominal dimensions starting from 20 to 80

 Internal circulation type nut

 It is double internal circulation type nut

(l).RIGHT HAND THREAD BALLSCREWS FDI type

Nominal dimensions starting from 16 to 80

 Internal circulation type nut

(m). BALLSCREWS WITH CYLINDERICAL TYPE NUT- RSI type

 Nominal dimensions starting from 20 to 80

 Internal circulation type nut

(a).  LH-RH COMBINATION BALLSCREWS- FSI type (single-internal nut)

Nominal dimensions starting from 16 to 80

 Internal circulation type nut

(b). GROUND BALLSCREWS- FDI type (double-internal nut)

 Nominal dimensions starting from 20 to 80

 Internal circulation type nut

 It is double internal circulation type nut

(c). GROUND BALLSCREWS- DFI type (single-internal nut)

 Nominal dimensions starting from 16 to 80

 Internal circulation type nut

(d). PRELOADED SINGLE NUT GROUND BALLSCREWS- RSI type (single-internal nut)

 Nominal dimensions starting from 20 to 80

 Internal circulation type nut

(e). PRELOADED DOUBLE NUT GROUND BALLSCREW- RDI type (double-internal nut)

 Nominal dimensions starting from 20 to 80

 Internal circulation type nut

 It is double internal circulation type nut

(f). BACKLASH FREE SINGLE NUT BALLSCREW- FSW type (single-external nut)

 Nominal dimensions starting from 20 to 80

 External circulation type nut

(g). BACKLASH FREE BALLSCREWS- FSV type (single-external nut)

 Nominal dimensions starting from 20 to 80

 External circulation type nut

(h). EXTERNAL CIRCULATION TYPE GROUND BALLSCREWS NUT ASSEMBLE -DFW      type (single-external nut)

 Nominal dimensions starting from 20 to 80

 External circulation type nut

(i). PRECISION BALLSCREWS- FDW type (double-external nut)

 Nominal dimensions starting from 16 to 80

 External circulation type nut

 It is double external circulation type nut

(j). LEFT HAND THREADS BALLSCREWS- FDV TYPE (double-external nut)

 Nominal dimensions starting from 20 to 80

 External circulation type nut

 It is double external circulation type nut
