ELECTRICAL DC MOTORISED LINEAR ACTUATOR

12Volts DC motorized Linear actuator

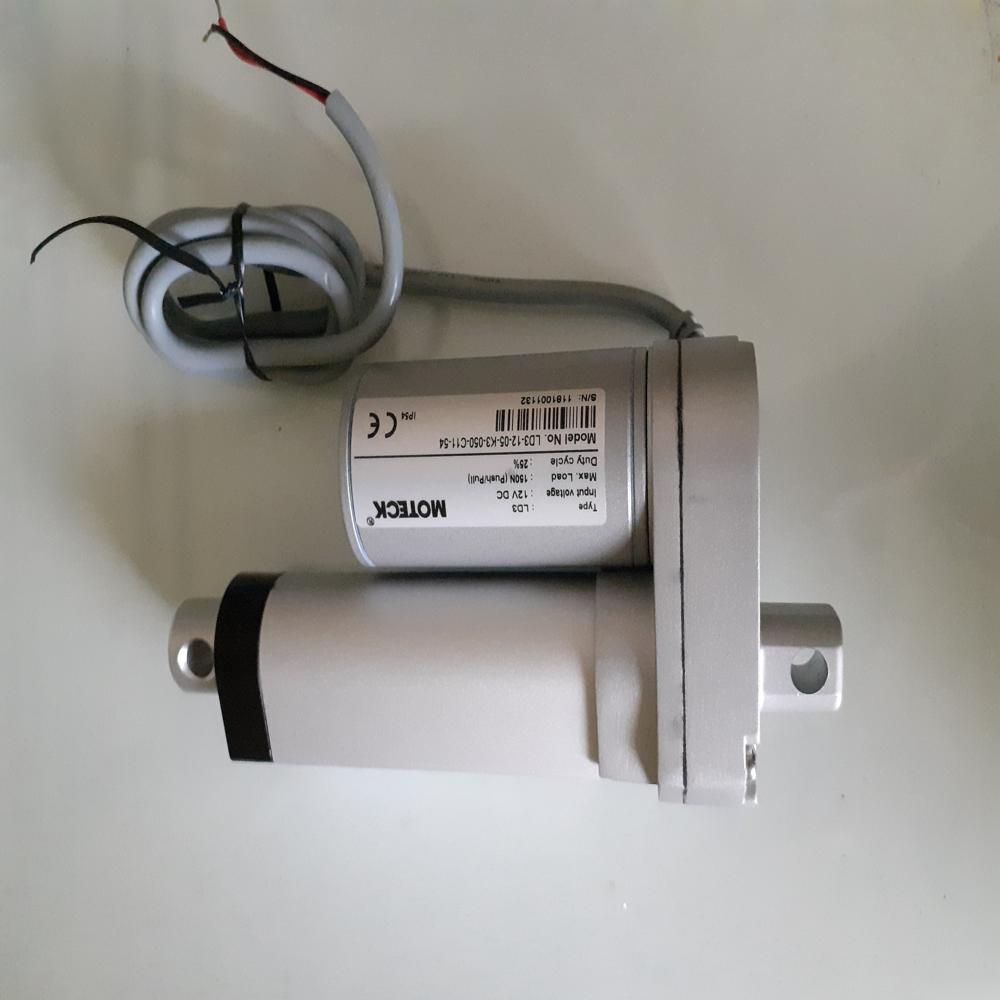

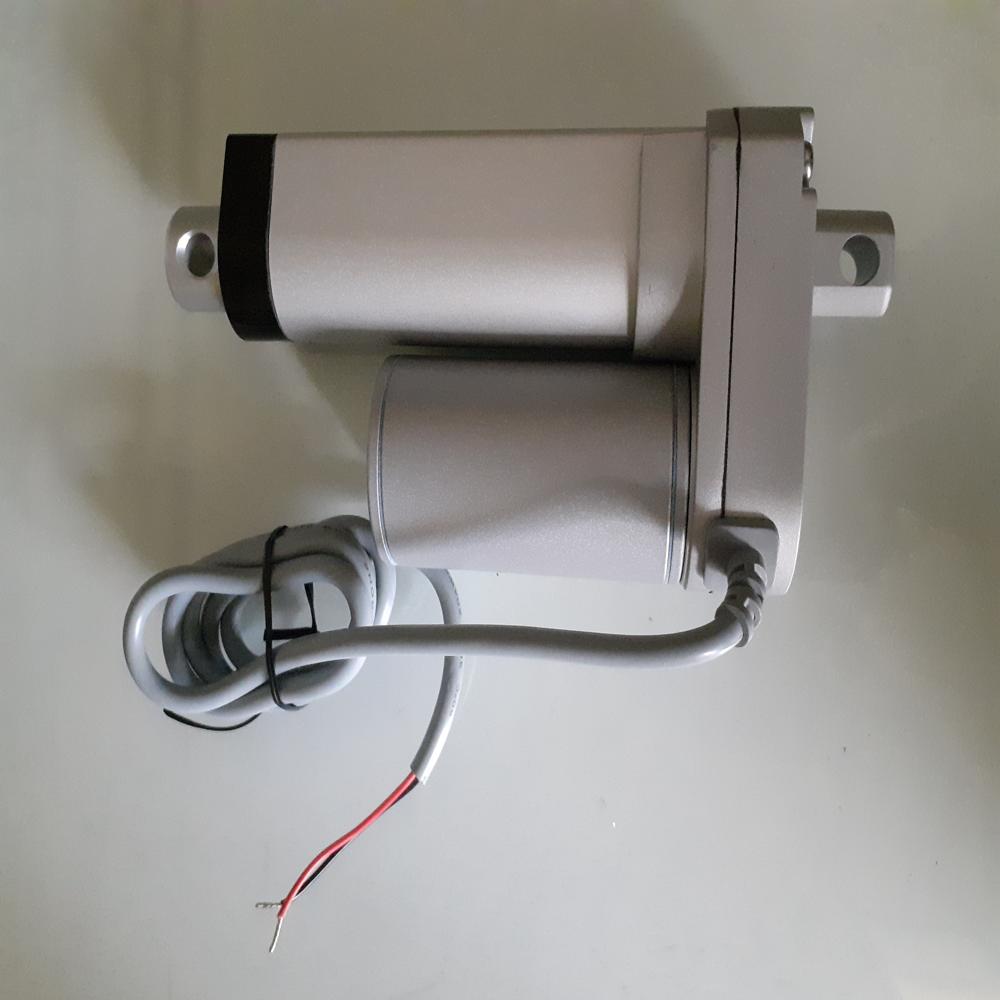

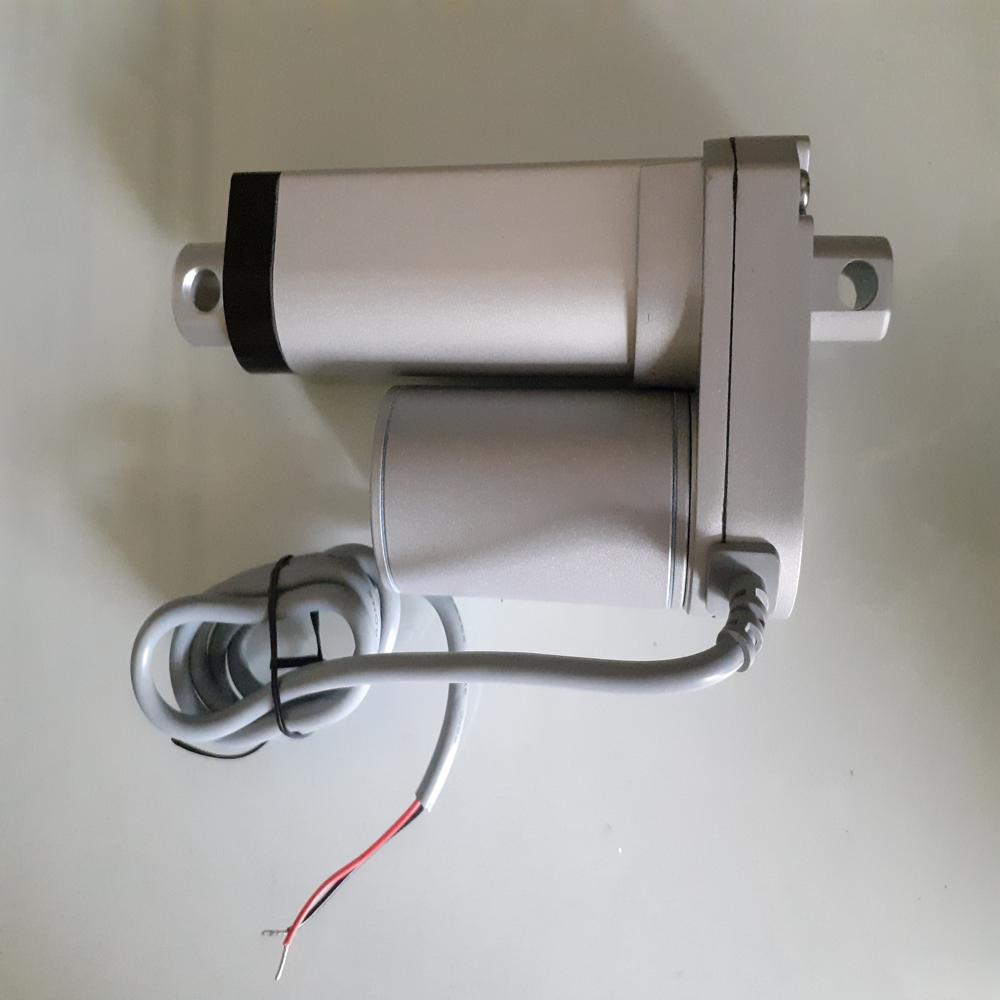

Rotolinear systems can supply compact linear actuator LD3 from our STOCK at Bangalore. The linear actuator shown in the photo is linear actuator part Number LD3-12-05-K3-050-C11-POT-54 which is 50mm stroke length 12VDC motorized linear actuator with potentiometer feedback and IP54 protection which are available in STOCK. LD3 are available with different speeds and load carrying capacity.

The distinct features of LD3 are follows.

 LD3 features its compact design, which is suitable for various applications that require limited

  installation space, such as window or gate opener, adjustable seat tilting and medical devices.

- Main applications: Industrial, home care, furniture, medical

- Input voltage: 12V DC / 24V DC

- Max. load: 1000N (Push / Pull)

- Max. static load: 2500N (Push / Pull)

- Typical speed at no load: 43.9 mm/sec

- Typical speed at full load: 5.5 mm/sec (Maximum 1000N load)

- Stroke: 50 / 100 / 150 / 200 / 250 / 300 mm

- Noise level: Please refer to Performance Data

- IP Level: IP54

- Color: Aluminum grey

- Preset limit switches

- Duty cycle: 25%, max. 1 min. continuous operation in 4 min.

- Ambient operation temperature: -25C +65C

- Certified: CE Marking, Electromagnetic Compatibility Directive 2014/30/EU (for LD3 only),

                  Medical Device Directive 93/42/EEC (for LD3M only)

     OPTIONS

Medical version (LD3M, approved according to EN60601)

- Quiet version (LD3Q, noise level 55dB)

- Positioning signal feedback with Hall effect sensor x 1

- Positioning signal feedback with Hall effect sensor x 2

- Analog positioning feedback with Potentiometer (POT)

- IP Protection level: IP65

- Clamp: Clamp connection is available if rear connector is not preferred.

- Mounting bracket (MB22)

Rotolinear systems  www.rotolinearindia.com is the leading supplier of CNC machinery parts in Bangalore. Rotolinear systems are the leading supplier of CNC machine parts like Ground ballscrews, Linear guideways , precision locknuts, metal bellow couplings, taper bush , clamping element, shrink disc, rigid couplings, keyless clampings, locking device, flexible disc couplings, servo couplings, torque limiter, safety couplings, servo insert couplings, planetary gearhead, linear actuator ect.

All sizes of LD3 linear actuators are available in STOCK at Bangalore.
