dc motoriised electromechanical linear actuator

rotolinear systems can supply linear actuator BD61 which  is a quiet and powerful actuator up to 6000N thrust, designed for use in furniture,

  homecare and fitness equipment. The actuator block allows a big stroke range in confined

  space. The small fitting dimensions make BD61 an ideal solution for recliners with lifting

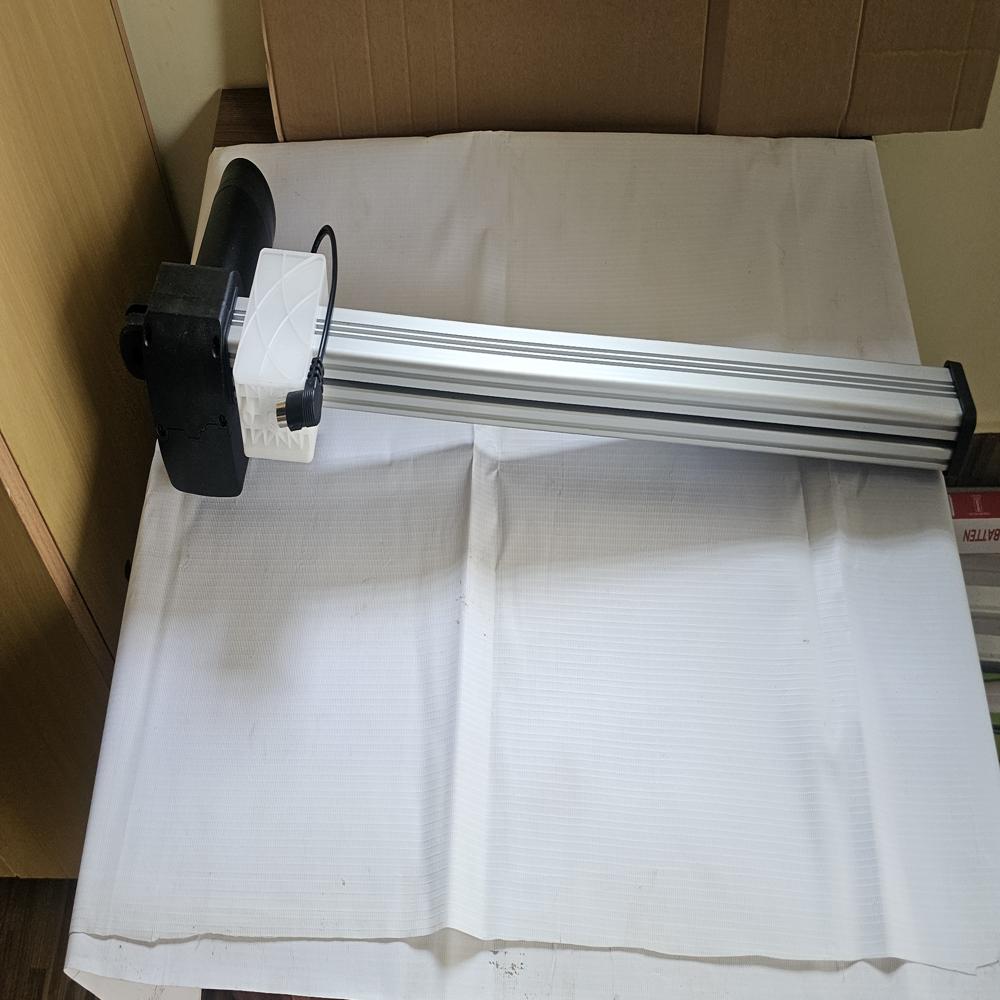

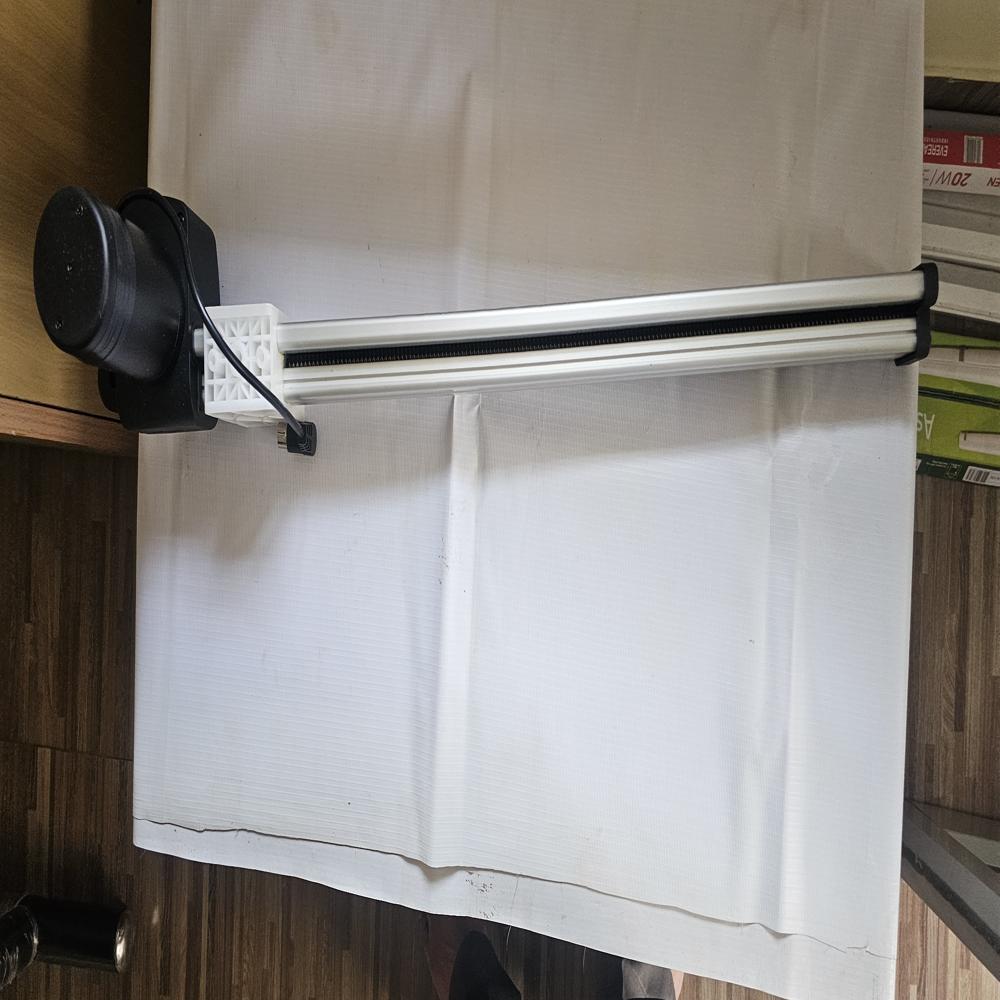

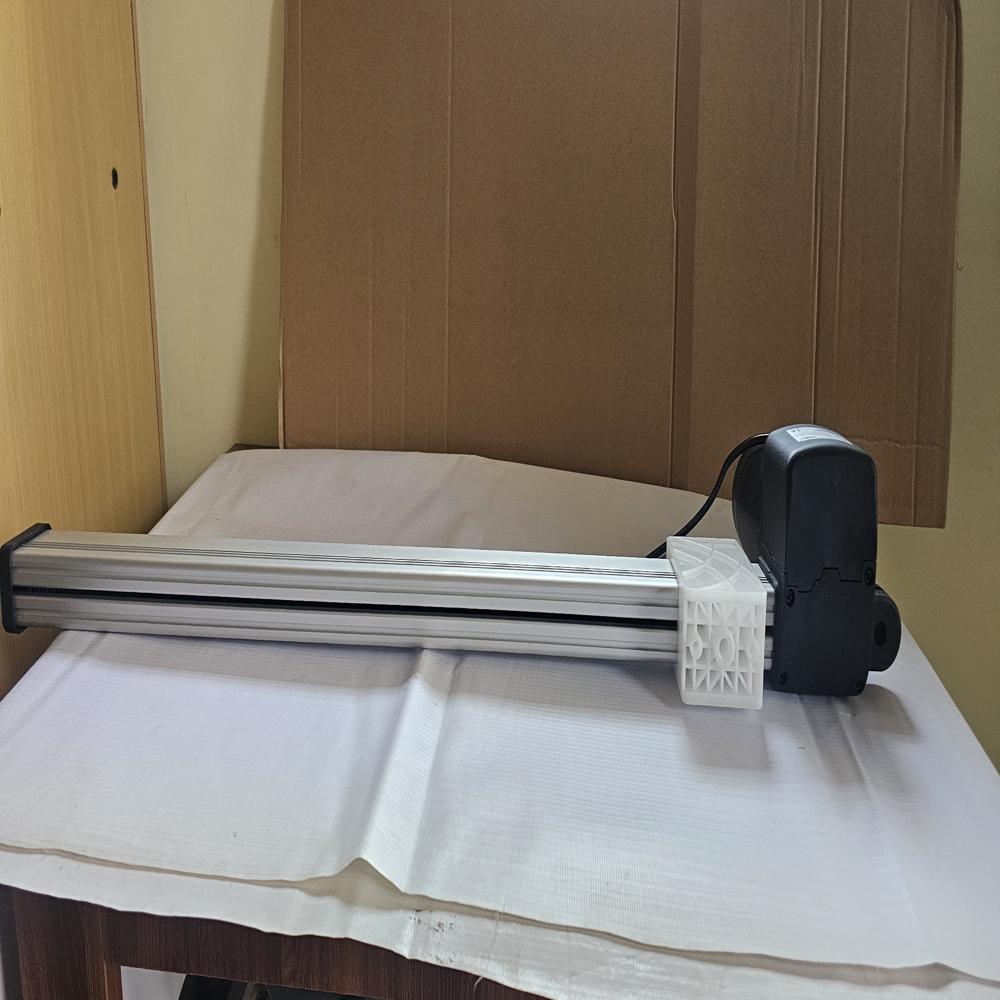

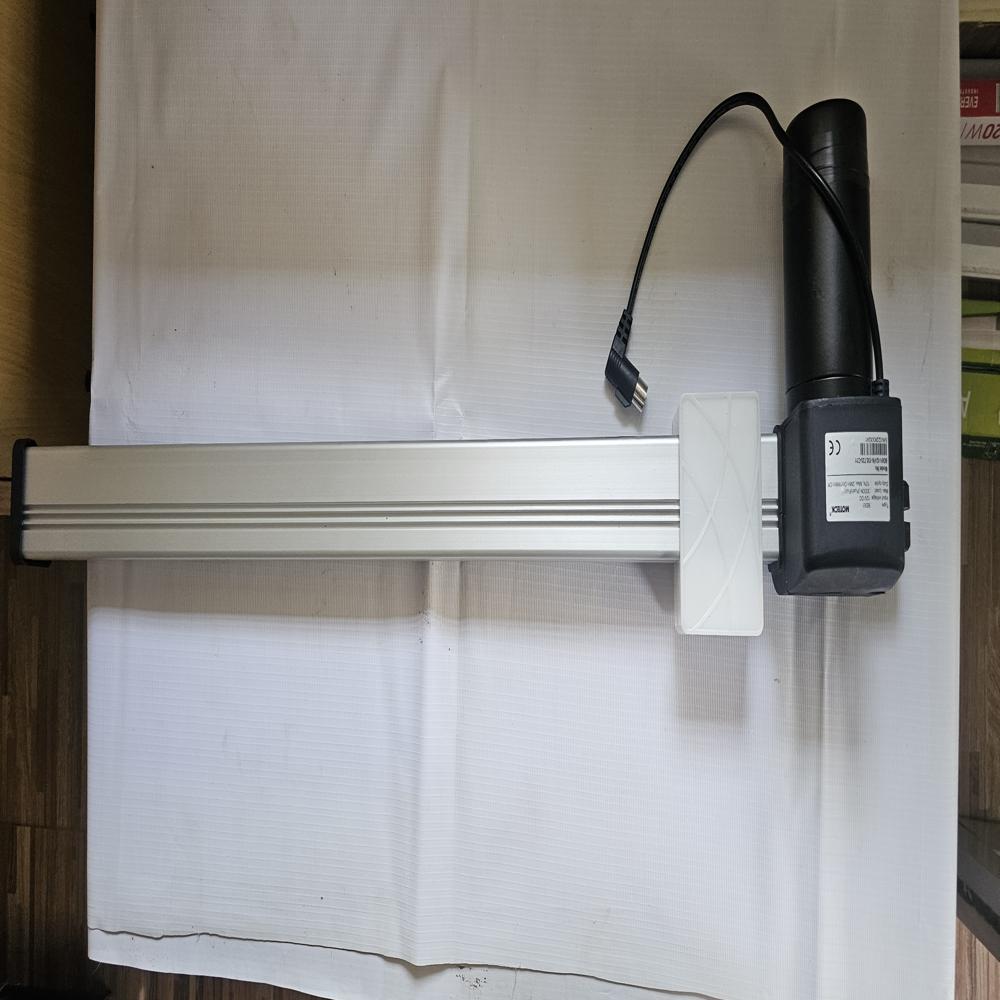

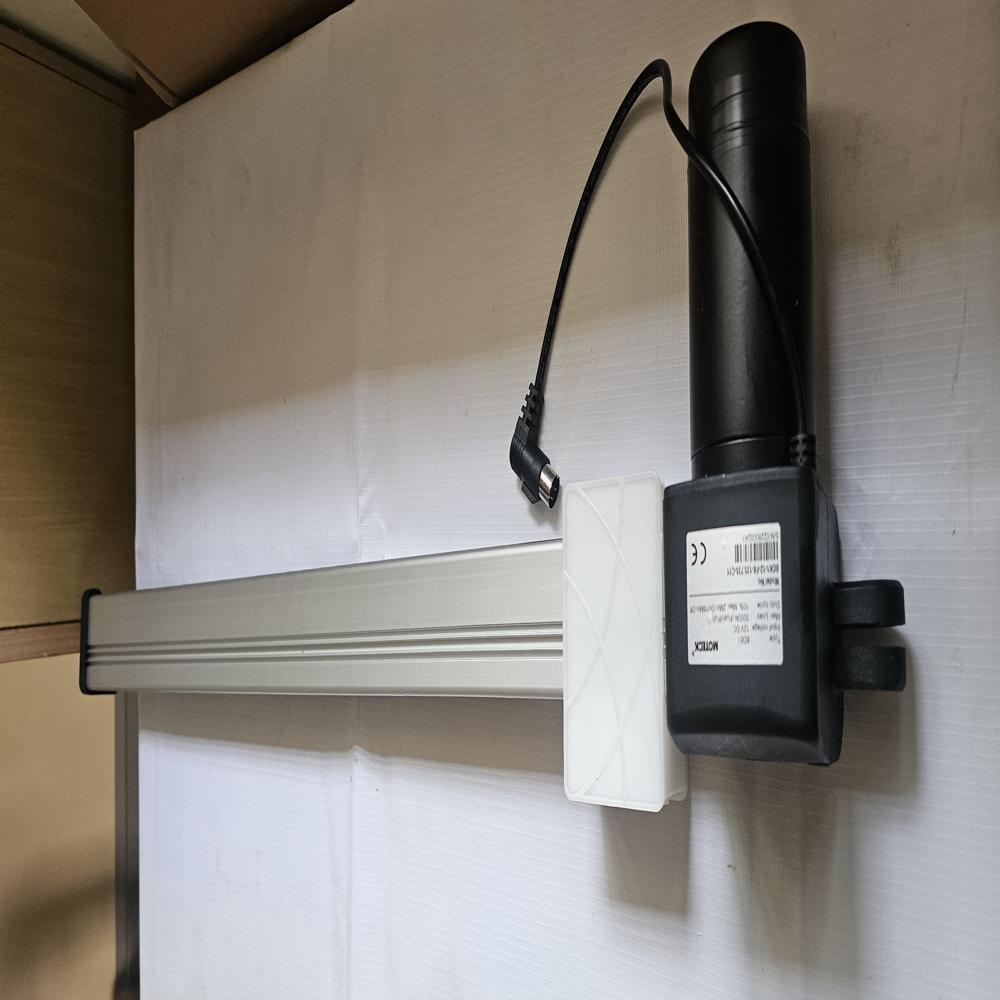

  assistance. The actuator shown in BD61-12-F8-135.435.C11000

- Main applications: Furniture, homecare, and fitness equipment

 Input voltage: 24V DC / 12V DC

- Max. load: 6000N (push) / 4000N (pull)

- Typical speed at no load: 33.3 mm/sec

- Typical speed at full load: 2.9 mm/sec (6000N load)

- Stroke: 100 1000 mm

- Noise level: 53dB

- Color: Black

- Preset limit switches

- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

- Ambient operation temperature: -20C +65C

- Certified: CE Marking, EMC Directive 2014/30/EU

OPTIONS

- Positioning signal feedback with Hall effect sensor x 1

- Positioning signal feedback with Hall effect sensor x 2

- Mechanical brake

most of the models are available in STOCK at bangalore.

rotolinear systems are the leading distributor for linear actuators based at bangalore.
