Ball Detent Type Torque Limiter

Ball Detent Type Torque Limiter Specification

Connection
17MM BORE

Dimension (L*W*H)
60 Millimeter (mm)

Operate Method
BALL DETENT TYPE

Color
WHITE

Application
CNC MACHINE

Power
2 Horsepower (HP)

Accuracy
99 %

Product Type
SAFTEY COUPLINGS

Material
STEEL

Weight
3 Kilograms (kg)

Usage
SERVO MOTOR

Classification
84836090

Function
TORQUE DISENGAGEMENT

Size
30NM

Ball Detent Type Torque Limiter Trade Information

Minimum Order Quantity
1 Number

FOB Port
EX-WORKS ROTOLINEAR BANGALORE

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Per Month

Delivery Time
6 Days

Sample Available
No

Packaging Details
10X5X5CM

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO9001

About Ball Detent Type Torque Limiter

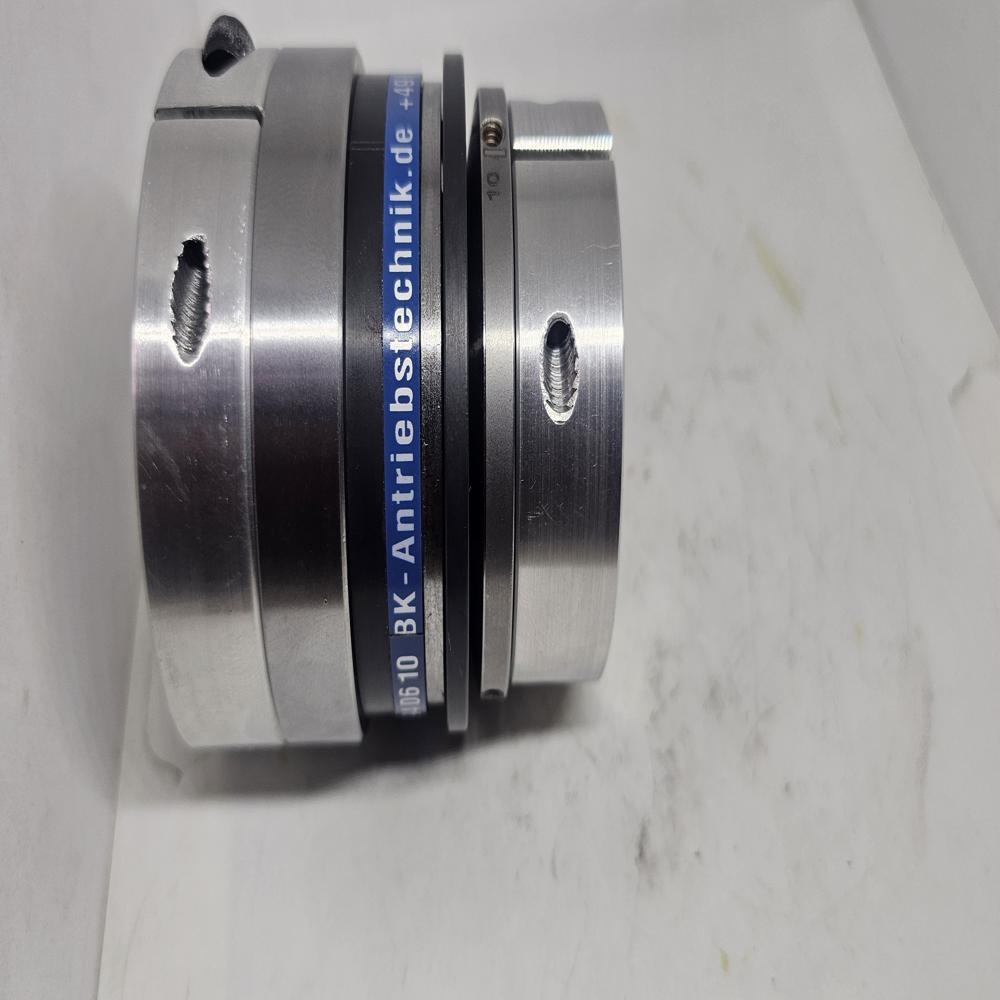

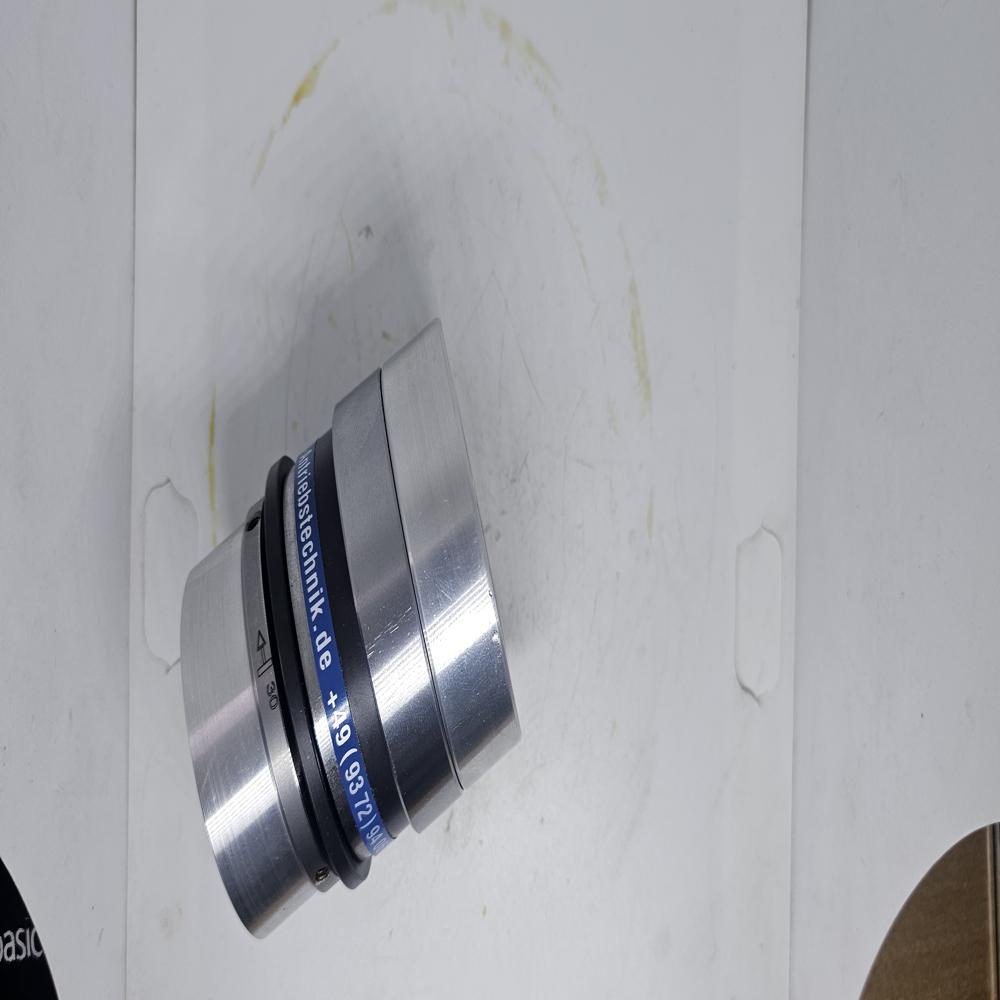

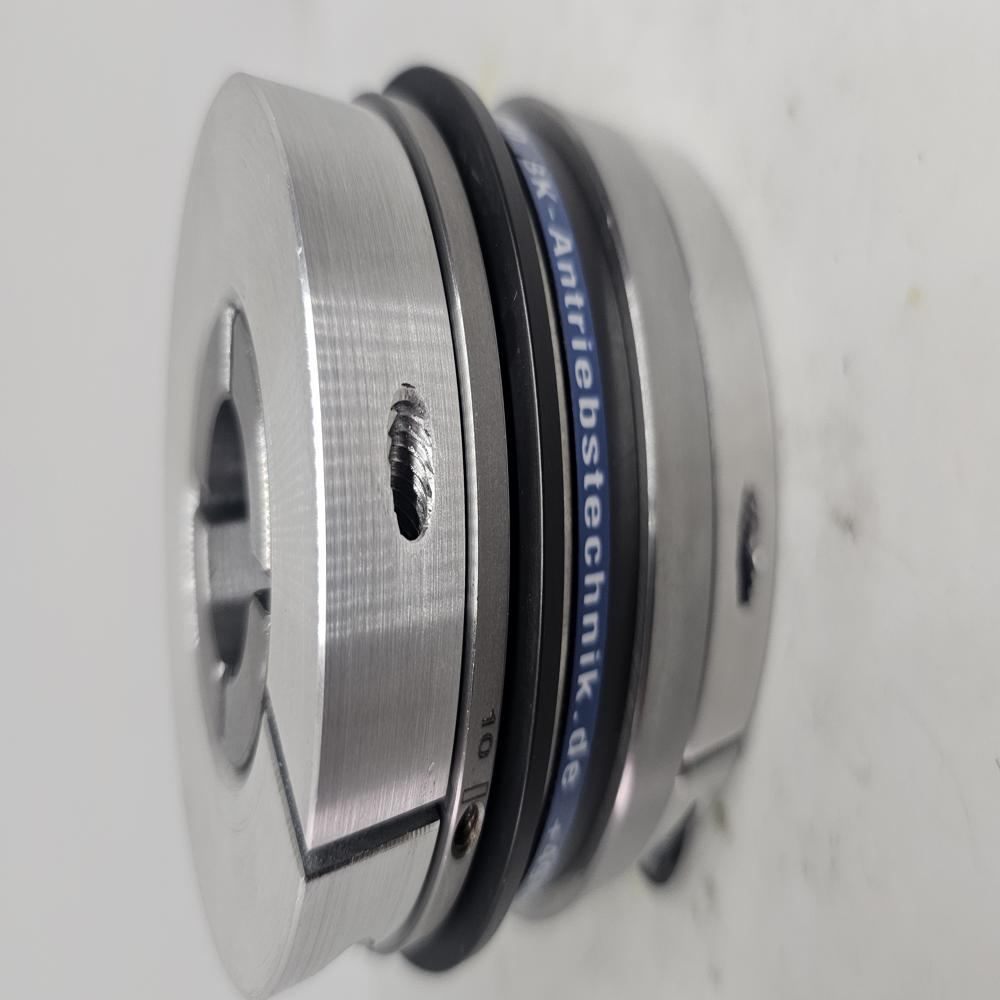

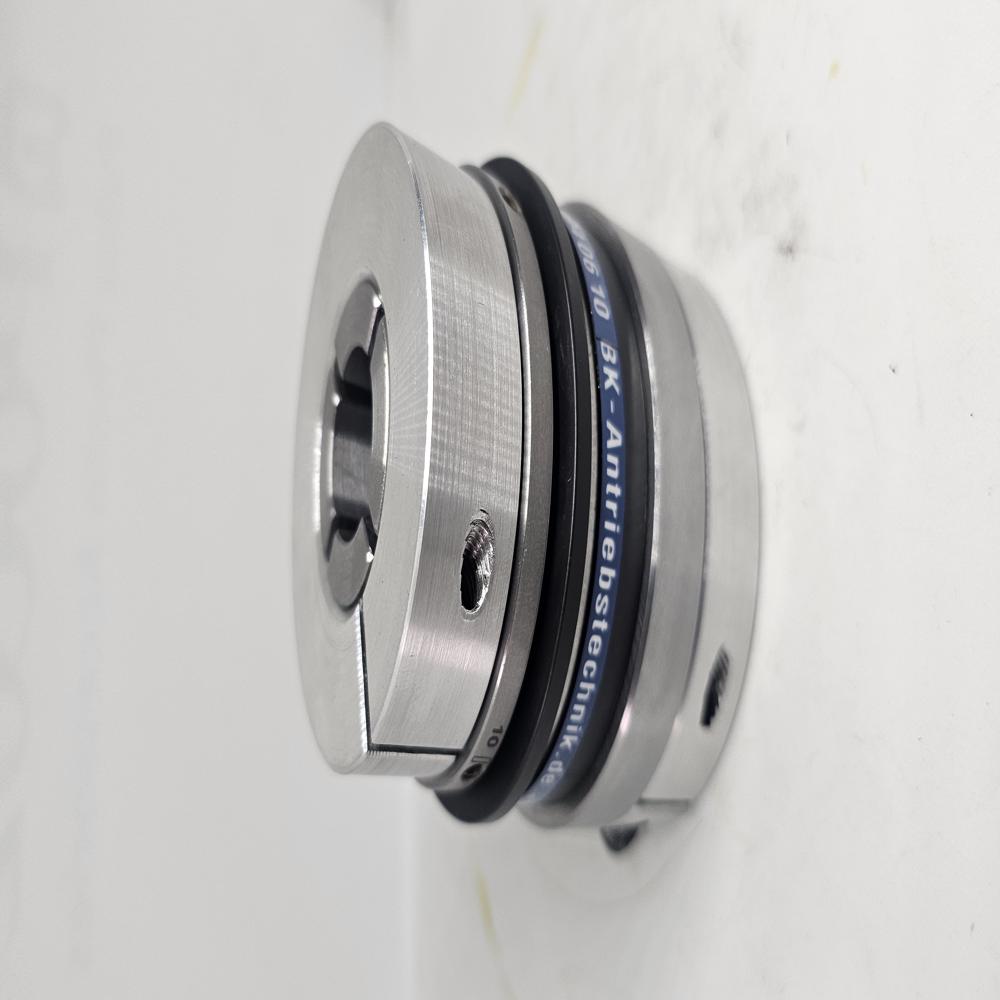

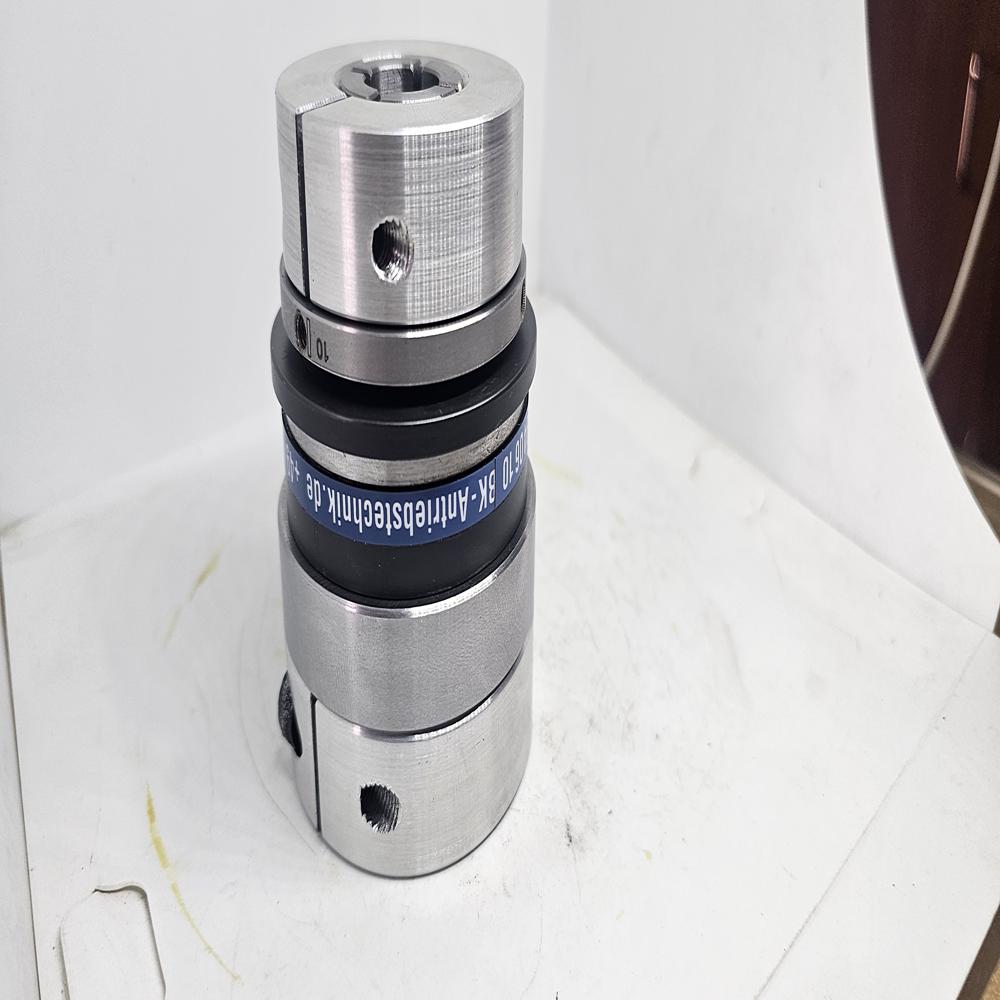

rotolinear systems can supply torque limiter upto 1400Nm TORQUE . The torque limiter shown in the picture is ball detent type torque limiter rigid type with bore on both input side 17mm and out put side 30mm.

Rotolinearsystems can supply KBK/L-K torque limiter.

KBK/L-K-2500 TORQUE LIMITERS

Torque ratings starting from 2 to 500NM

With collet clamp and one ball bearings

Available in single position as well as multi position engagement

RPM 4500 to 13200

Torque settings can be adjusted from 0.2 - 2 (Nm)

Minmax bore sizes from 3 to 62mm.

APPLICATIONS FOR SAFETY COUPLINGS

Machine Tools

CNC Machines

Wood Working Machines

Factory Automation Equipment

Textile Machines

Industrial Robots

Sheet Metal Forming Machines

Printing Machines

OPERATING MODE SAFETY COUPLINGS

The operating mode of KBK safety couplings is based on the usage of cup springs with degressive characteristics. Once adjusted overload torque is reached the balls disengage automatically and the transmission of the torque is interrupted.

After the torque falls below the allowed maximum torque, the safety couplings reengages automatically and continues transmitting the torque!
